RAM® Standard Bracket Adapter for Speakers & Microphones
Part#:RAM-101-MIC2U UPC:793442006951
419 kr

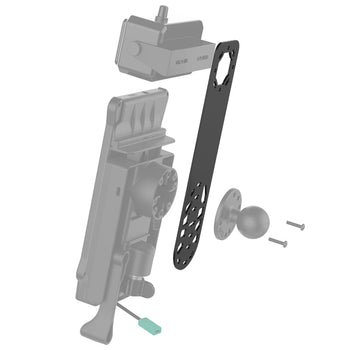

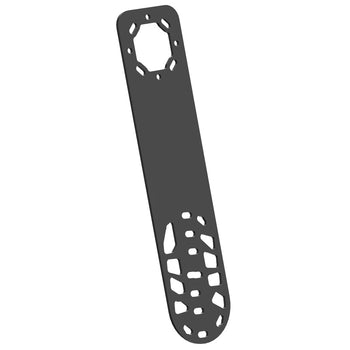

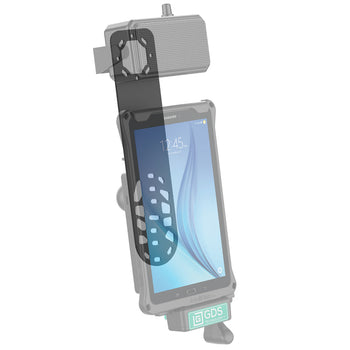

Attach a speaker or microphone to your RAM® Tab-Tite™ or RAM® Tab-Lock™ cradle with the RAM® Speaker/Microphone Bracket. Simply install the bracket between the cradle and the ball base – two screws are included for attaching the bracket to any RAM® Tab-Lock™ cradle. Compatible with speakers, microphones and accessories that use the common AMPS hole pattern, the bracket features four spaced AMPS hole pattern sets that allow for various mounting heights. Also included is a vertical and horizontal set of holes for attaching a diamond base. Measuring 10.81" in length, this bracket supports both portrait and landscape placement.
hardware included

(2) #8 x 3/4" Sheet Metal Screws
(4) #8-32 x 3/4" Machine Screws
(2) #8-32 x 3/8" Machine Screws
(2) #8-32 Nylock Nuts
(2) M4 x 35mm Machine Screws
(2) M4 Nylock Nuts

product dimensions

Overall Length: 10.81"

hole pattern

See Drawing

materials

Powder coated steel

packaging type

Poly Bag

Weight

0.313 kg
