RAM® Key Lock Mount with 100x100mm VESA Plate - Long
Part#:RAM-101LU-D-246 UPC:793442929090
Ball Icon C SIZE
Arm Icon LONG ARM
2 419 kr

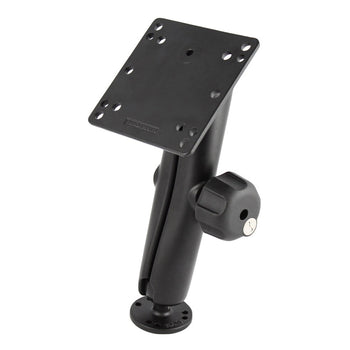

The RAM-101LU-D-246 consists of a 9 inch double socket arm, 2.5" diameter round base with the universal AMPS hole pattern and 4.75" square plate with the VESA hole pattern. The VESA plate contains a 75mm X 75mm and 100mm X 100mm hole pattern. Designed into the mount is a 1.5" diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm. Rubber ball and socket technology allows for almost infinite adjustment and perfect viewing angles. This kit comes with a key lock knob that allows the user to lock the mount in one position, preventing other from adjusting or disassembling the mount without the use of the provided keys.
hardware included

(4) .312" x .187" Shoulder Washers
(2) Keys

product dimensions

Overall Height: 10.85"

socket to socket length

8"

hole pattern

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
See Drawing

ball size

C Size (1.5")

weight capacity

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs

materials

Marine-grade aluminum

packaging type

Poly Bag

Weight

1.232 kg

Consists of
