RAM® Flat Surface Mount for Zebra Printer Docks
Part#:RAM-101U-ZE1 UPC:793442101175
Ball Icon C SIZE
Arm Icon MED ARM
1 249 kr
  • Flat surface drill-down mount for Zebra printer OEM docks

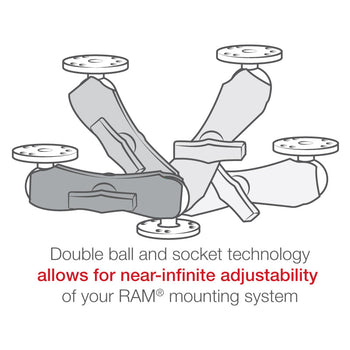

  • Includes two round ball bases and C size medium length double socket arm ball and socket technology allows for near-infinite adjustability
  • Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty
The RAM-101U-ZE1 consists of a medium length double socket arm, two 2.5" diameter round bases that contain the universal AMPS hole pattern and hardware to attach to the Zebra RW 420 printer. The mount is designed with a 1.5" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm this allowing for almost infinite adjustment and perfect viewing angles. The included RAM’s patented design dampens shock and vibration, helping to extend the life of your device.

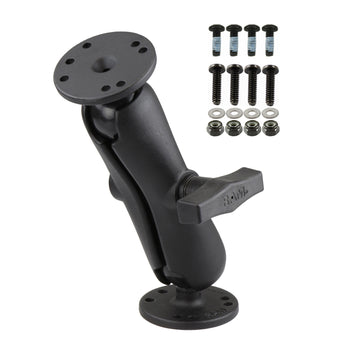

hardware included

(4) #10-24 x 3/4" Machine Screws
(4) #10 Stainless Steel Flat Washers
(4) #10-24 Nylock Nuts
(4) #8-32 x 1/2" Machine Screws

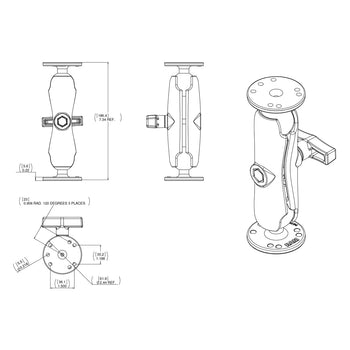

product dimensions

Overall Height: 7.35"

socket to socket length

4.66"

hole pattern

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

ball size

C Size (1.5")

weight capacity

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs

materials

Marine-grade aluminum

packaging type

Poly Bag

Weight

0.549 kg

Consists of

RAM® Round Plate with Ball - C Size RAM-202U
Ball Icon C SIZE
Arm Icon ARM
349 kr
RAM® Double Socket Arm - C Size Medium RAM-201U
Ball Icon C SIZE
Arm Icon MED ARM
559 kr
