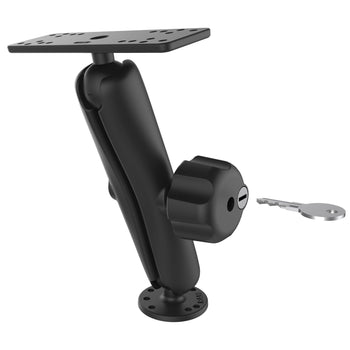

RAM® Universal Marine Electronic Mount with Key Lock Knob
Part#:RAM-111U-DL UPC:793442910043
Ball Icon C SIZE
Arm Icon LONG ARM
2 289 kr
  • Complete flat surface, drill-down mounting solution with an overall height of 10.68" and locking knob for theft deterrence
  • Includes C size long socket arm, 2.5" diameter flat surface drill-down base, and a 6.25" x 2" marine electronic adapter for fishfinders depthfinders and more RAM® Mounts ball and socket technology allows for near-infinite adjustability
  • Compatible with select Garmin, Lowrance, Raymarine and Humminbird Fishfinders and GPS chartplotters
  • Made of Powder-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments
  • Backed by a lifetime warranty
The RAM-111U-DL consists of a 2.5" diameter round base that contains the universal AMPs hole pattern, 9 inch double socket arm, locking knob and 6.25" x 2" rectangle base. The rectangle base contains different combinations of pre-drilled holes which will match up to many electronic devices and mounts, including Marine GPS, CB Radios, Ham Radios, Gimbal Brackets and more.
hardware included

(2) Keys
product dimensions

Overall Height: 10.85"
socket to socket length

8"
hole pattern

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
See Drawing
plate size

Rectangular Plate: 6.25" x 2"
Round Plate: 2.5" Diameter
ball size

C Size (1.5")
weight capacity

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
materials

Marine-grade aluminum
packaging type

Poly Bag
Weight

1.021 kg
Additional Information
The included plate is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.

Consists of

RAM® Round Plate with Ball - C Size RAM-202U
Ball Icon C SIZE
Arm Icon ARM
349 kr

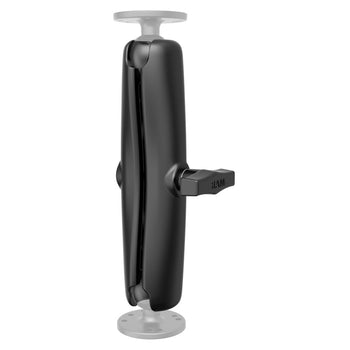

RAM® Double Socket Arm - C Size Long RAM-201U-D
Ball Icon C SIZE
Arm Icon LONG ARM
1 029 kr

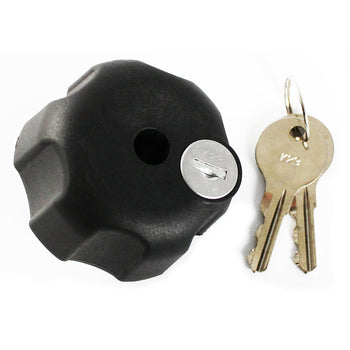

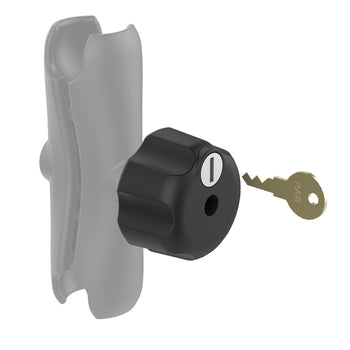

RAM® Key Lock Knob with Brass Insert for C Size Socket Arms RAM-KNOB5LU
609 kr
RAM® Universal Marine Electronic Ball - C Size RAM-111BU
Ball Icon C SIZE
Arm Icon ARM
459 kr

ECHOMAP Plus 72cv

ECHOMAP Plus 73cv

ECHOMAP Plus 74cv

ECHOMAP Plus 75cv

ECHOMAP Plus 77cv

ECHOMAP UHD2 5"

ECHOMAP UHD2 7"

GPSMAP 722

GPSMAP 722xs

GPSMAP 723

GPSMAP 723xsv

GPSMAP 742

GPSMAP 742xs

GPSMAP 743

GPSMAP 743xsv

Striker Plus 5cv

Striker Vivid 5cv

Striker Plus 7cv

Striker Plus 7sv

Striker Vivid 5cv

Striker Vivid 7cv

Striker Vivid 7sv

Fishfinders and GPS Chartplotters

Elite FS 7

Elite FS 9

HDS Carbon 7

HDS LIVE 7

Hook Reveal 7 Series

Hook Reveal 9 Series

Fishfinders and GPS Chartplotters

Fishfinders and GPS Chartplotters

Fishfinders and GPS Chartplotters
