UNPKD RAM POWERED KEYED LOCKING CRADLE AND PIN-LOCK MOUNT FO
Part#:RAM-138-S-SNM4PL-V7B1U UPC:793442935237 Patented
Ball Icon C SIZE
Arm Icon MED ARM
9 239 kr
  • Bundle for Sonim XP10 includes powered locking holder, speaker, microphone and mounting bracket for all-in-one communication
  • Powered RAM® EZ-Roll'r™ form-fit dock provides a perfect fit for your device while keeping the device charged

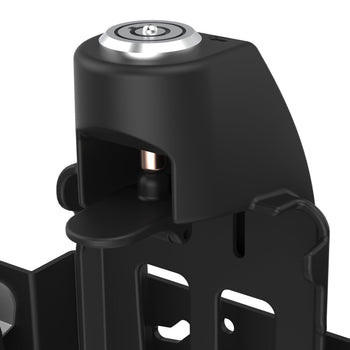

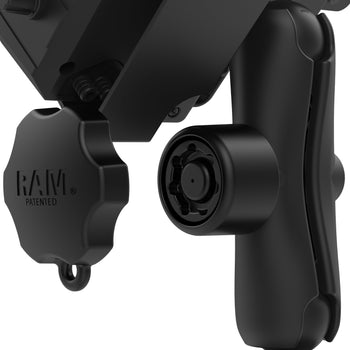

  • Key locking RAM® EZ-Roll'r™ form-fit holder and RAM® Pin-Lock™ for theft deterrence
  • RAM® components backed by lifetime warranty; dock and electronics backed by a 3-year warranty

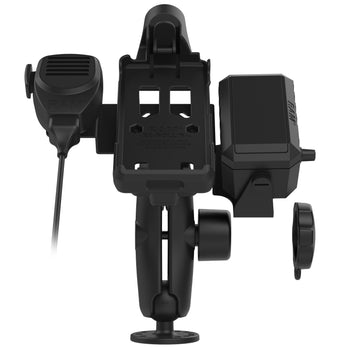

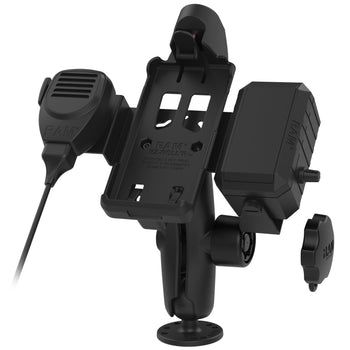

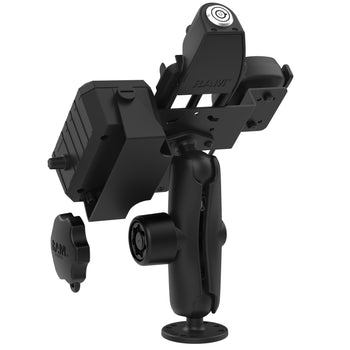

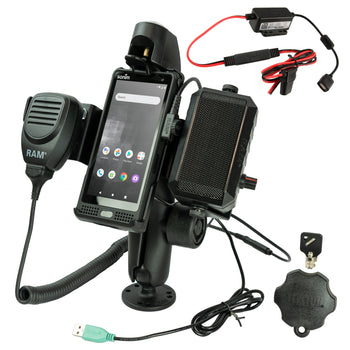

This Sonim XP10 bundle includes the RAM® EZ-Roll'r™ Powered Key Locking Dock for Sonim XP10, double ball mount with RAM® Pin-Lock™ Security Knob, and a mounting bracket containing a speaker and microphone. This bundle secures your Sonim XP10 and keeps your peripherals together and connected as one unit. The powered dock features two integrated pogo pins that provide charging capabilities to the device through a male USB Type A connector and includes a key lock for extra security and peace of mind. The provided speaker connects to the Sonim unit using an included 10-pin to 3.5 audio adapter cable. Included with the complete bundle is a 10-30V modular vehicle hardwire charger.
This Sonim XP10 bundle includes the RAM® EZ-Roll'r™ Powered Key Locking Dock for Sonim XP10, double ball mount with RAM® Pin-Lock™ Security Knob, and a mounting bracket containing a speaker and microphone. This bundle secures your Sonim XP10 and keeps your peripherals together and connected as one unit. The powered dock features two integrated pogo pins that provide charging capabilities to the device through a male USB Type A connector and includes a key lock for extra security and peace of mind. The provided speaker connects to the Sonim unit using an included 10-pin to 3.5 audio adapter cable. Included with the complete bundle is a 10-30V modular vehicle hardwire charger.
hardware included

Assembly Hardware
(2) Keys for Holder
(1) Key for Locking Knob
(1) 10-pin to 3.5 Audio Adapter Cable
(1) Modular Hardwire Charger
speaker specifications

Independently adjustable volume knob
Max volume level: 100dB
8Ω / 10W rated speaker
socket to socket length

4.66"
hole pattern

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
plate size

2.5" Diameter
ball size

C Size (1.5")
weight capacity

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
materials

Marine-grade aluminum
High strength composite
Powder-Coated Steel
packaging type

Poly Bag
input voltage

10V - 30V DC
output voltage

5-9VDC*
output current

2.5A max
input connector

Charger: Female USB Type A
input cable length

1.2 Meters including 2 Pole Flat Marine Connector
output cable length

.2 Meters
operating temperature

-10°C to +70°C
storage temperature

-40°C to +70°C
compliance

Over Voltage Protection
Short Circuit Protection
Reverse Polarity Protection
RoHS Compliance
WEEE Compliance
SAE J-1113-5 Load Dump (Transient Voltage)
Moisture Resistant
certifications

CE Certification
e-Mark Certification
RCM Certification
FCC Certification
Warranty

3 year warranty
Weight

1.76 kg
Additional Information
*5V output is by way of USB 2.0 BC1.2 and DCP mode. 9V output is by way of AFC and QC 2.0.

XP10
