RAM® Ball Adapter with #8-32 Hardware for Garmin Fishfinders
Part#:RAM-202-G4U UPC:793442932618
Ball Icon C SIZE
Arm Icon ARM
409 kr

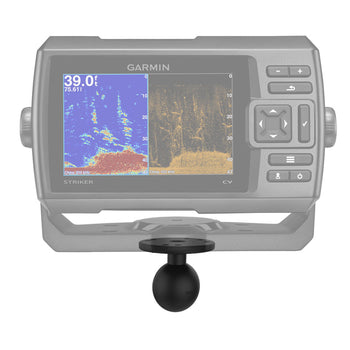

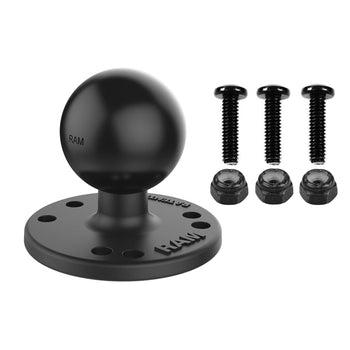

The RAM-202-G4U consists of a 1.5" diameter rubber ball connected to a flat 2.5" diameter base. This mount has pre-drilled holes, including the universal AMPS hole pattern. Included are 3x (#8-32 x 5/8” PH PD Mach Screws) and 3x (#8-32 SS Nylock Nuts) that will connect the RAM-202-G4U to the bottom of the Garmin echo™.
hardware included

(3) #8-32 x 5/8" Machine Screws
(3) #8-32 Nylock Nuts
hole pattern

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
ball size

C Size (1.5")
weight capacity

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
materials

Marine-grade aluminum
packaging type

Poly Bag
Weight

0.118 kg

Striker 4

Striker 4dv

Striker Plus 4cv

Striker Vivid 4cv

echo 100

echo 150

echo 300c

ECHOMAP Plus 42cv

ECHOMAP Plus 43cv

ECHOMAP Plus 44cv

ECHOMAP Plus 45cv

ECHOMAP UHD2 6"
