RAM® Ball Adapter with Hardware for Raymarine Dragonfly - C Size
Part#:RAM-202U-RYM1 UPC:793442941061
Ball Icon C SIZE
Arm Icon ARM
419 kr

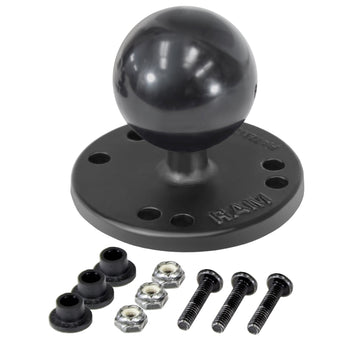

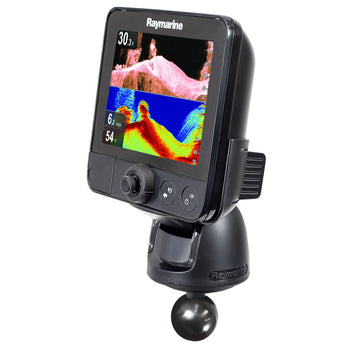

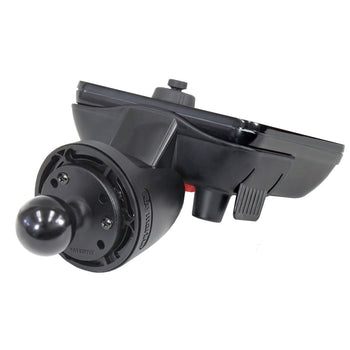

The RAM-202U-RYM1 consists of a 1.5" diameter rubber ball connected to a flat 2.5" diameter base. The base has pre-drilled holes, including the universal AMPs hole pattern. Included are (3 quantity) (#8-32 x 3/4" PH PD Mach Screws) and (3 quantity) (#8-32 SS Nylock Nuts) that will connect the RAM-202U-RYM1 to the bottom of all Raymarine® Dragonfly™ Sonar/GPS devices.
hardware included

(3) #8-32 x 3/4" Machine Screws
(3) #8-32 Nylock Nuts
(3) .312" x .187" Shoulder Washers
hole pattern

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
ball size

C Size (1.5")
weight capacity

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
materials

Marine-grade aluminum
packaging type

Poly Bag
Weight

0.114 kg

Dragonfly
