RAM® U-Bolt Double Ball Mount with 1/4"-20 Threaded Stud - C Size Long
Part#:RAM-231-D-202AU UPC:793442940620 Patented
Ball Icon C SIZE
Arm Icon LONG ARM
1 799 kr

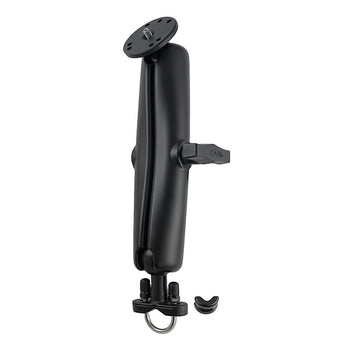

The RAM-231-D-202AU consists of a U bolt base for rails between .5" and 1" in diameter, a long length C-size double socket arm, and a 2.5" round plate with universal AMPS hole pattern and a removeable 1/4"-20 threaded post in the center.
hardware included

(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer
clamp range

.5" - 1" diameter
socket to socket length

8"
hole pattern

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
ball size

C Size (1.5")
weight capacity

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
materials

Marine-grade aluminum
packaging type

Poly Bag
Weight

0.957 kg

Consists of

RAM® Ball Adapter with Round Plate and 1/4"-20 Threaded Stud - C Size RAM-202AU
Ball Icon C SIZE
Arm Icon ARM
459 kr
RAM® Double Socket Arm - C Size Long RAM-201U-D
Ball Icon C SIZE
Arm Icon LONG ARM
1 029 kr
RAM® Handlebar U-Bolt Base for Rails 0.5" to 1" in Diameter - C Size RAM-231U
Ball Icon C SIZE
Arm Icon ARM
459 kr
Sold out

that contain 1/4"-20 Female Threaded Hole
