RAM® Handlebar U-Bolt Double Ball Mount - C Size Long
Part#:RAM-231-D-202U UPC:793442940637 Patented
Ball Icon C SIZE
Arm Icon LONG ARM
1 679 kr

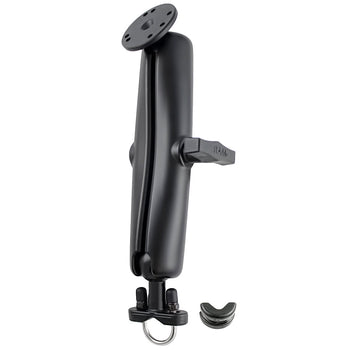

The RAM-231-D-202U consists of a stainless steel u-bolt base, 1.5" diameter LONG double socket arm and round base adapter that contains the universal AMPs hole pattern. Included in this package is hardware that will accommodate rails from 0.50" to 1" in diameter. The base includes black cover aps to be placed over the exposed ends of the u-bolt. The included composite rail adapter can narrow the rail to a minimum width of 0.5". The mount is designed with a RAM 1.5" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm this allowing for almost infinite adjustment and perfect viewing angles.
hardware included

(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer

clamp range

.5" - 1" diameter

socket to socket length

8"

hole pattern

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

ball size

C Size (1.5")

weight capacity

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs

materials

Marine-grade aluminum

packaging type

Poly Bag

Weight

0.957 kg

Consists of
