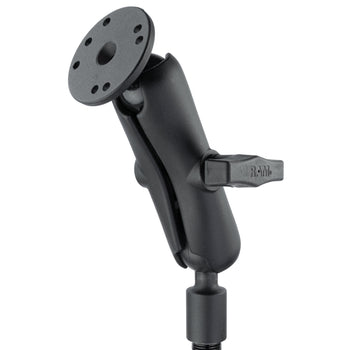

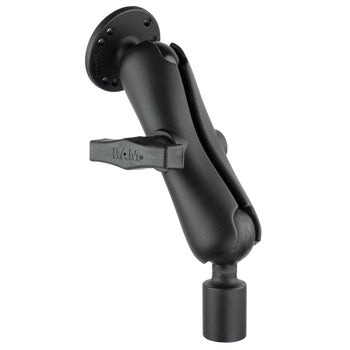

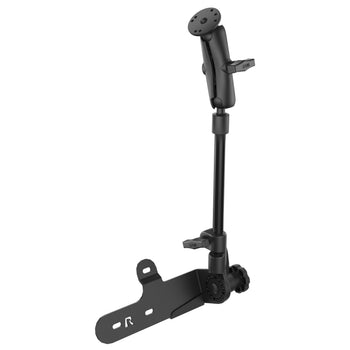

RAM® Pod HD™ Vehicle Mount for ’07-’24 Mercedes Sprinter Van
Part#:RAM-316-HD-18-202-SPRU UPC:793442008504 Patented
Ball Icon C SIZE
Arm Icon MED ARM
4 369 kr
Blending the best of versatility, strength and installation ease, the RAM® Pod HD™ is a workhorse for fleet transportation and serious consumers alike. This version of the RAM® Pod HD™ vehicle mount is designed for 2007-2019 Mercedes Sprinter vans, and is RAM® Mounts Compatible™ with device holders for tablets, small laptops, and other devices. Requiring minimal space in the vehicle cab, the RAM® Pod HD™ can be removed without the use of tools.
hardware included

Assembly Hardware
(3) 1.68" Stand-Offs
(3) M8-1.25 x 70mm Hex Bolts
(4) M8 Steel Washers
(3) 5/16" Lock Washers
(1) M8-1.25 Nut
Stabilizer Foot
product dimensions

Height Range: 24.75" - 31.75"
socket to socket length

4.66"
hole pattern

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
plate size

See Drawing
ball size

C Size (1.5")
weight capacity

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
materials

Powder coated steel
Marine-grade aluminum
packaging type

Poly Bag
Weight

2.141 kg

Consists of

RAM® 1/2" NPT Hole and Ratchet Adapter with Male Teeth RAM-284U
969 kr
Sold out
RAM® 18" Long 1/2" NPT Male Threaded Pipe RAM-PA8218
769 kr
RAM® 1/2" NPT Female Threaded Hole with Ball RAM-218-1U
Ball Icon C SIZE
Arm Icon ARM
399 kr
RAM® Double Socket Arm - C Size Medium RAM-201U
Ball Icon C SIZE
Arm Icon MED ARM
559 kr
RAM® Round Plate with Ball - C Size RAM-202U
Ball Icon C SIZE
Arm Icon ARM
349 kr

Sprinter Van (2007-2024)
