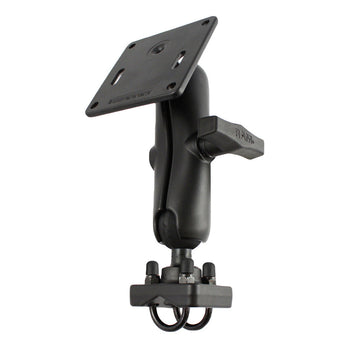

RAM® Double U-Bolt Mount with 75x75mm VESA Plate for .75" - 1" Rails
Part#:RAM-334-1U UPC:793442905100
Ball Icon C SIZE
Arm Icon MED ARM
1 569 kr
The RAM-334-1U consists of a double socket arm, 3.625" square base with the VESA hole pattern and stainless steel double u-bolt base that will fit pipes from 0.75" to 1" in diameter. The VESA base contains a 75mm X 75mm hole pattern. Designed into the mount is a 1.5" diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm. Rubber ball and socket technology allows for almost infinite adjustment and perfect viewing angles.
hardware included

(2) 1/4"-20 U-Bolts for .75" - 1" Rails
(4) 1/4"-20 Nylock Nuts
(4) Rubber Caps

clamp range

.75" - 1" diameter

socket to socket length

4.66"

hole pattern

75 x 75mm VESA

plate size

3.625" x 3.625"

ball size

C Size (1.5")

weight capacity

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs

materials

Marine-grade aluminum

packaging type

Poly Bag

Weight

0.737 kg

Consists of

RAM® Double Socket Arm - C Size Medium RAM-201U
Ball Icon C SIZE
Arm Icon MED ARM
559 kr
