RAM® Double Ball Diamond Plate Mount - A Size Long
Part#:RAM-A-101U-B UPC:793442410116
Ball Icon A SIZE
Arm Icon LONG ARM
1 139 kr

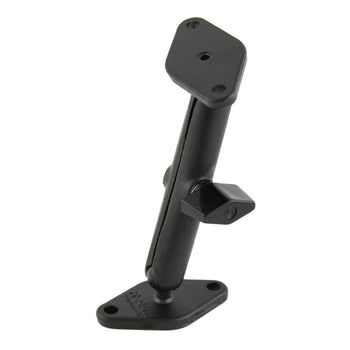

The RAM-A-101U-B consists of a long length double socket arm and two diamond bases. The diamond bases measure 2.43" x 1.31" diamond base and contain two holes 1.912" from center to center, positioned at both ends of the diamond base. The hole pattern found on the diamond bases will connect to many RAM cradles, as well as third party cradles including mounts with the industry standard AMPS hole pattern. Designed into the mount is a 0.56" diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm.
socket to socket length

3.12"

hole pattern

2-Hole AMPS 1.912"

ball size

A Size (9/16")

weight capacity

.5 lb

materials

Marine-grade aluminum

packaging type

Poly Bag

Weight

0.109 kg

Consists of

RAM® Diamond Ball Base - A Size RAM-A-238U
Ball Icon A SIZE
Arm Icon ARM
249 kr
RAM® Double Socket Arm - A Size Long RAM-A-201U-B
Ball Icon A SIZE
Arm Icon LONG ARM
719 kr
