RAM® Double Ball Mount with Drill-Down, U-Bolt & Adhesive Bases
Part#:RAM-B-101U-CR1 UPC:793442913532 Patented
Ball Icon B SIZE
Arm Icon MED ARM
1 119 kr

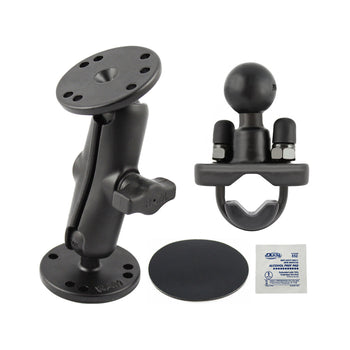

The RAM-B-101U-CR1 consists of a medium length B-size arm with two 2.5" diameter round plates with universal AMPS hole pattern. This mount also includes a 2.5" diameter double sided adhesive pad and a U-Bolt base with 1" diamter B-size ball. The U-Bolt base is compatible with round rails between .5" and 1.25" in diameter.
hardware included

(1) 2 7/16" Double Adhesive Pad
(1) Alcohol Prep Pad
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer
clamp range

.5" - 1.25" diameter
socket to socket length

3"
hole pattern

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
ball size

B Size (1")
weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials

Marine-grade aluminum
packaging type

Poly Bag
Weight

0.54 kg

Consists of

RAM® 2.43" Diameter Double Sided Adhesive Pad RAM-202PSAU
169 kr
RAM® Universal Double Ball Mount with Two Round Plates - B Size Medium RAM-B-101U
Ball Icon B SIZE
Arm Icon MED ARM
669 kr
RAM® Handlebar U-Bolt Base for Rails 0.5" to 1.25" in Diameter - B Size RAM-B-231ZU
Ball Icon B SIZE
Arm Icon ARM
369 kr
