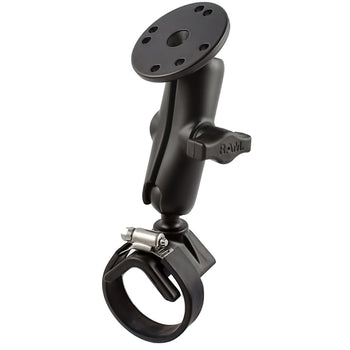

RAM® Large Strap Hose Clamp Mount for Beechcraft Bonanza Airplanes
RAM® Large Strap Hose Clamp Mount for Beechcraft Bonanza Airplanes
B SIZE
MED ARM
969 kr
The RAM-B-108B-STRAP40 accommodates rails from 2" to a maximum of 3" in diameter. To mount the RAM-B-108B-STRAP40 base, place the saddle shaped plate on the rail then wrap the metal clamp strap around the rail and plate. Tighten the screw knob on the metal strap with a screwdriver until the strap has a firm hold on the rail. The RAM-B-108B-STRAP40 is an alternative mounting base for aircraft such as the Bonanza or Beech with a “throw over yoke”.
| hardware included |
(1) #40 Worm Drive Strap Clamp |
| clamp range |
2" - 3" diameter |
| socket to socket length |
3" |
| hole pattern |
4-Hole AMPS: 1.181" x 1.496" |
| ball size |
B Size (1") |
| weight capacity |
Standard Use: 2 lbs |
| materials |
Marine-grade aluminum |
| packaging type |
Retail Bag |
| Weight |
0.377 kg |
Consists of
RAM® Large Strap Hose Clamp Base for Beechcraft Bonanza Airplanes
RAM-B-108B-STRAP40U
B SIZE
ARM
419 kr
B SIZE
ARM
