Build your mount
RAM® Strap Hose Clamp Mount with 1/4"-20 Camera Adapter - Medium
RAM® Strap Hose Clamp Mount with 1/4"-20 Camera Adapter - Medium
B SIZE
MED ARM
1 029 kr

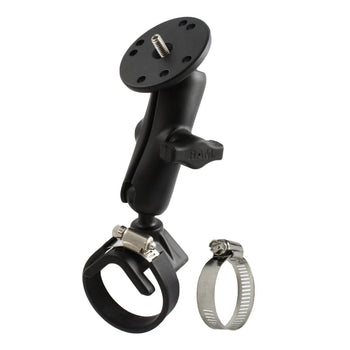

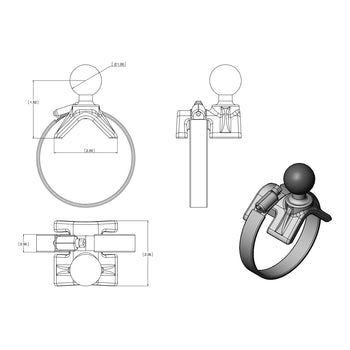

The RAM-B-108U-BIT1 consists of a medium length B-size arm with a 2.5" diameter round plate with universal AMPS hole pattern with a removeable 1/4"-20 threaded post on one side and a strap clamp base for rails from 1" to 2.1" in diameter on the other.
| hardware included |
(1) #20 Worm Drive Strap Clamp |
| clamp range |
1" - 2.1" diameter |
| socket to socket length |
3" |
| hole pattern |
4-Hole AMPS: 1.181" x 1.496" |
| thread pitch |
1/4"-20 x .25" |
| plate size |
2.5" Diameter |
| ball size |
B Size (1") |
| weight capacity |
Standard Use: 2 lbs |
| materials |
Marine-grade aluminum |
| packaging type |
Poly Bag |
| Weight |
0.308 kg |
