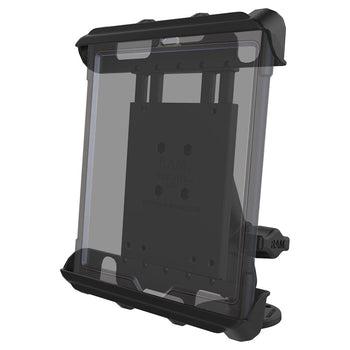

RAM® Tab-Tite™ Drill-Down Mount for Large Tablets with Cases
Part#:RAM-B-138-TAB8U UPC:793442939587 Patented
Ball Icon B SIZE
Arm Icon MED ARM
1 299 kr
The RAM-B-138-TAB8U consists of a 2.5" diameter round base with the universal AMPS hole pattern, double socket arm, round base adapter and Tab-Tite™ universal clamping cradle. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm this allowing for almost infinite adjustment and perfect viewing angles. The included Tab-Tite™ cradle includes a spring loaded back plate and custom support cups for 10" screen tablets WITH heavy duty cases. The spring loaded design makes it easy to load and unload your tablet, along with keeping it secure while on the go. Interchangeable cup ends are designed to optimize the functionality of your tablet, following access to audio jacks, usb, power, and other ports, your tablet can be used just as it was intended. The Tab-Tite™ cradle is compatible with any tablet that will fit the dimensions listed below. It is important to verify the dimensions of your tablet when determining the overall size.
hardware included

Assembly Hardware

holder dimensions

Height Range: 9" - 11.5"
Width Range: 6.38" - 8.31"
Depth Range: .13" - 1.12"

socket to socket length

3"

hole pattern

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

plate size

2.5" Diameter

ball size

B Size (1")

weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials

Marine-grade aluminum
High strength composite

packaging type

Poly Bag

Weight

0.544 kg

iPad Pro 9.7 (1st Generation) with Case
