RAM® ATV/UTV Handlebar U-Bolt Mount with Action Camera Adapter
Part#:RAM-B-149Z-2-GOP1U UPC:793442937194 Patented
Ball Icon B SIZE
Arm Icon MED ARM
1 059 kr

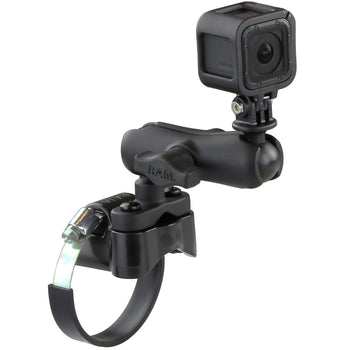

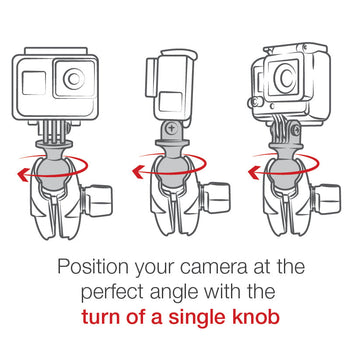

The RAM-B-149Z-2-GOP1U consists of a steel strap base, u-bolt bases, double socket arm and 1" diameter ball with custom GoPro® Hero adapter. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm this allowing for almost infinite adjustment and perfect viewing angles. Designed for a clean installation, the RAM strap mount will accommodate most common roll bar sizes, allowing for the placement of the RAM rubber ball base. This mount can also be attached to smaller diameter handlebars on ATVs using the included hardware. The GoPro® Hero adapter attaches directly to the underside of the camera, replacing the factory mounting bracket.
hardware included

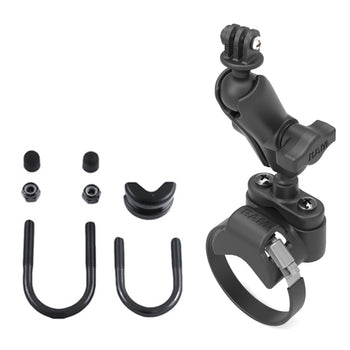

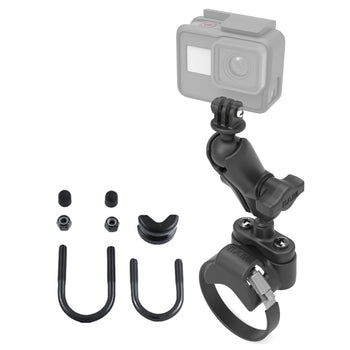

Assembly Hardware
(1) Strap Clamp Adapter
(2) 1/4"-20 x 1" Machine Screws
(2) 1/4"-20 Nylock Nuts
(1) Zinc Worm Drive Strap Clamp
(1) 6" Rubber Strip
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) Rubber Caps
(1) U-Bolt Spacer
clamp range

U-Bolt: .5" - 1.25" diameter
Strap Clamp: 1.57" - 3.15" diameter
socket to socket length

3"
ball size

B Size (1")
weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials

Marine-grade aluminum
High strength composite
packaging type

Poly Bag
Weight

0.367 kg

Consists of

RAM® Action Camera Universal Ball Adapter RAP-B-202U-GOP1
Ball Icon B SIZE
Arm Icon ARM
269 kr
RAM® Double Socket Arm - B Size Medium RAM-B-201U
Ball Icon B SIZE
Arm Icon MED ARM
369 kr
RAM® ATV/UTV Ball Base for Rails up to 3.15" - Zinc RAM-B-231Z-2U
Ball Icon B SIZE
Arm Icon ARM
509 kr
