RAM® ATV/UTV Double Ball Rail Mount with Gun Holster Clip
Part#:RAM-B-149Z-2-GUN1U UPC:793442926181 Patented
Ball Icon B SIZE
Arm Icon MED ARM
1 469 kr

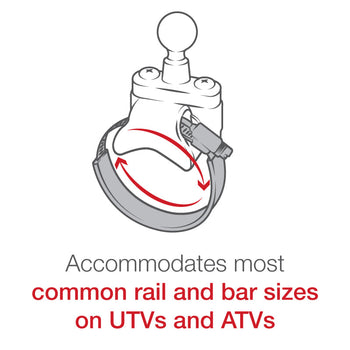

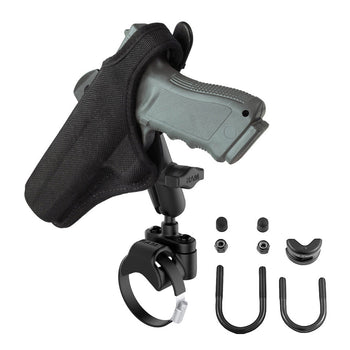

The RAM-B-149Z-2-GUN1U consists of a steel strap base, u-bolt bases, double socket arm and gun holster clip. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at both ends of the double socket arm. With a twist of the arm knob, you can move the gun holster clip to your optimum viewing position. Designed for a clean installation, the RAM strap mount will accommodate most common roll bar sizes on UTV’s, allowing for the placement of the RAM rubber ball base. This mount can also be attached to smaller diameter handlebars on ATVs using the included hardware.
hardware included

Assembly Hardware
(1) Strap Clamp Adapter
(2) 1/4"-20 x 1" Machine Screws
(2) 1/4"-20 Nylock Nuts
(1) Zinc Worm Drive Strap Clamp
(1) 6" Rubber Strip
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) Rubber Caps
(1) U-Bolt Spacer

clamp range

U-Bolt: .5" - 1.25" diameter
Strap Clamp: 1.57" - 3.15" diameter

socket to socket length

3"

ball size

B Size (1")

weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials

Powder coated steel
Marine-grade aluminum
High strength composite

packaging type

Poly Bag

Weight

0.454 kg

Consists of

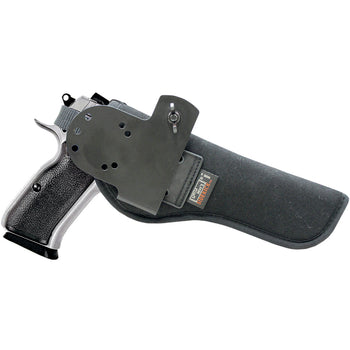

RAM® Gun Holster Clip RAM-HOL-GUN1U
459 kr
