RAM® Handlebar U-Bolt Double Ball Mount for Garmin 12 Series
Part#:RAM-B-149Z-G1U UPC:793442149092 Patented
Ball Icon B SIZE
Arm Icon MED ARM
959 kr

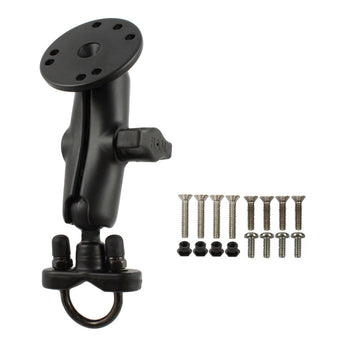

The RAM-B-149Z-G1U consists of our medium length B-size double socket arm with our Handlebar U-Bolt Base for Rails 0.5" to 1.25" in Diameter and our 2.5" diameter round plate with universal AMPS hole pattern. This mount also includes the hardware needed to bolt that round plate to select Garmin GPS units. A complete list of compatible devices can be found below in the compatibility section.
hardware included

(4) #6-32 x 5/8" Machine Screws
(4) #6-32 x 7/8" Machine Screws
(4) #6-32 x 3/8" Machine Screws
(4) #6-32 Nut Inserts
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer
clamp range

.5" - 1.25" diameter
socket to socket length

3"
hole pattern

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
ball size

B Size (1")
weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials

Marine-grade aluminum
packaging type

Poly Bag
Weight

0.322 kg

Consists of

RAM® Round Plate with Ball & Mounting Hardware for Garmin GPSMAP + More RAM-B-202-G1U
Ball Icon B SIZE
Arm Icon ARM
319 kr
Sold out
RAM® Double Socket Arm - B Size Medium RAM-B-201U
Ball Icon B SIZE
Arm Icon MED ARM
369 kr
RAM® Handlebar U-Bolt Base for Rails 0.5" to 1.25" in Diameter - B Size RAM-B-231ZU
Ball Icon B SIZE
Arm Icon ARM
369 kr

StreetPilot III

GPSMAP 172-250
