RAM® Handlebar U-Bolt Double Ball Mount for Garmin 45, 48, 89, 90, 92
Part#:RAM-B-149Z-G3U UPC:793442003615 Patented
Ball Icon B SIZE
Arm Icon MED ARM
959 kr

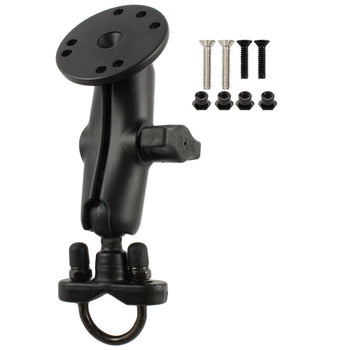

The RAM-B-149Z-G3U consists of our medium length B-size double socket arm with our Handlebar U-Bolt Base for Rails 0.5" to 1.25" in Diameter and our 2.5" diameter round plate with universal AMPS hole pattern. This mount also includes the hardware needed to bolt that round plate to select Garmin GPS units. A complete list of compatible devices can be found below in the compatibility section.
hardware included

(2) #6-32 x 3/4" Machine Screws
(2) #6-32 x 5/8" Machine Screws
(4) #6-32 Nut Inserts
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer
clamp range

.5" - 1.25" diameter
socket to socket length

3"
hole pattern

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
ball size

B Size (1")
weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials

Marine-grade aluminum
packaging type

Poly Bag
Weight

0.318 kg

Consists of

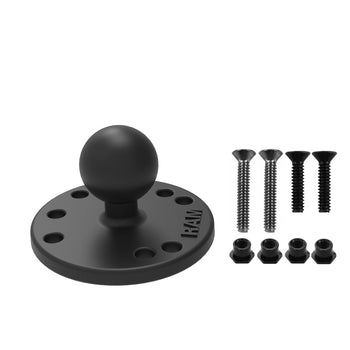

RAM® Round Plate with Ball & Mounting Hardware for Garmin StreetPilot RAM-B-202-G3U
Ball Icon B SIZE
Arm Icon ARM
299 kr
Sold out

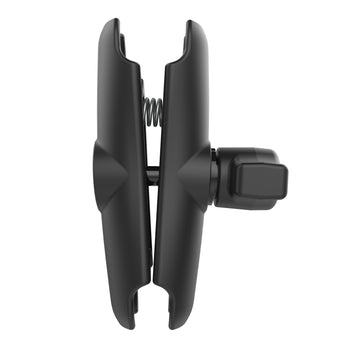

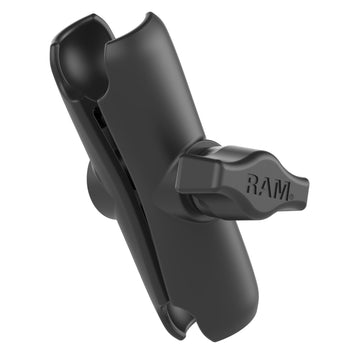

RAM® Double Socket Arm - B Size Medium RAM-B-201U
Ball Icon B SIZE
Arm Icon MED ARM
389 kr
RAM® Handlebar U-Bolt Base for Rails 0.5" to 1.25" in Diameter - B Size RAM-B-231ZU
Ball Icon B SIZE
Arm Icon ARM
389 kr

StreetPilot 7200

StreetPilot 7500
