RAM® Handlebar U-Bolt Double Ball Mount for Garmin nuvi 600 Series
Part#:RAM-B-149Z-GA23U UPC:793442908019 Patented
Ball Icon B SIZE
Arm Icon MED ARM
1 209 kr

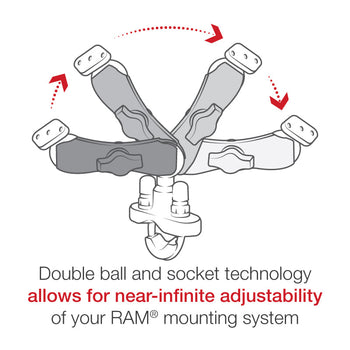

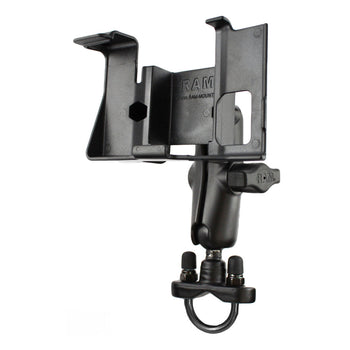

The RAM-B-149Z-GA23U consists of a double socket arm, zinc coated u-bolt base, diamond adapter base and custom high strength cradle for the Garmin nuvi 600 series. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at the base and cradle. With a twist of the arm knob, you can move the motorcycle Garmin nuvi mount to your optimum viewing position. Included in this package is hardware that will accommodate rails from 0.50" to 1.25" in diameter.
hardware included

Assembly Hardware
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer
clamp range

.5" - 1.25" diameter
socket to socket length

3"
ball size

B Size (1")
weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials

Marine-grade aluminum
High strength composite
packaging type

Poly Bag
Weight

0.308 kg

Consists of

RAM® Form-Fit Cradle for Garmin nuvi 600-680 RAM-HOL-GA23U
439 kr
Sold out
RAM® Handlebar U-Bolt Double Ball Mount - B Size Medium RAM-B-149ZU
Ball Icon B SIZE
Arm Icon MED ARM
819 kr

nuvi 600

nuvi 610

nuvi 650

nuvi 660

nuvi 670

nuvi 680
