RAM® Handlebar U-Bolt Mount for Garmin Approach and Dakota 10 & 20
Part#:RAM-B-149Z-GA36 UPC:793442930508 Patented & Pats. Pend.
Ball Icon B SIZE
Arm Icon MED ARM
1 089 kr

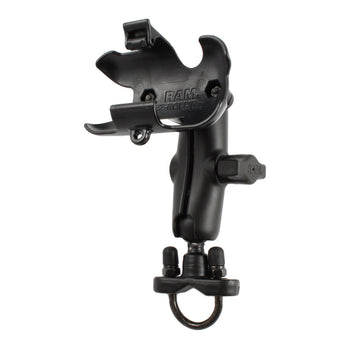

The RAM-B-149Z-GA36 consists of our medium length B-size double socket arm with our Handlebar U-Bolt Base for Rails 0.5" to 1.25" in Diameter and our form-fitting cradle for Garmin Approach G3 and Dakota 10 & 20.
hardware included

Assembly Hardware
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer
clamp range

.5" - 1.25" diameter
socket to socket length

3"
ball size

B Size (1")
weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials

Marine-grade aluminum
High strength composite
packaging type

Retail Bag
Weight

0.308 kg

Consists of

RAM® Form-Fit Cradle for Garmin Approach, Garmin Dakota 10 & 20 RAM-HOL-GA36U
259 kr
RAM® Handlebar U-Bolt Double Ball Mount - B Size Medium RAM-B-149ZU
Ball Icon B SIZE
Arm Icon MED ARM
819 kr

Approach G3

Dakota 10

Dakota 20
