Build your mount

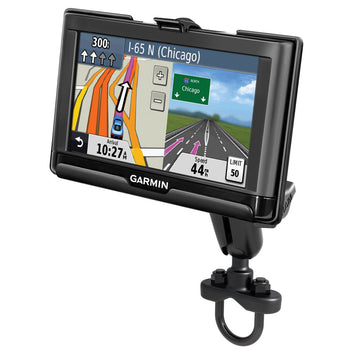

RAM® Handlebar U-Bolt Mount for Garmin nuvi 52, 54, 55, 56, 57, & 58
RAM® Handlebar U-Bolt Mount for Garmin nuvi 52, 54, 55, 56, 57, & 58
B SIZE
MED ARM
1 109 kr

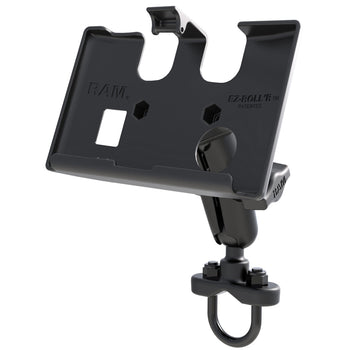

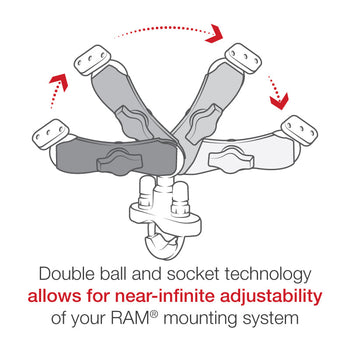

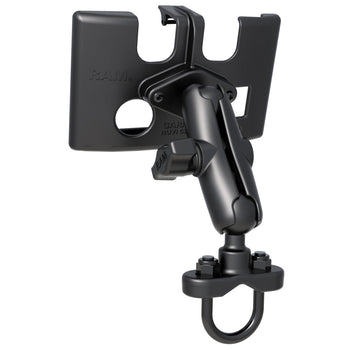

The RAM-B-149Z-GA55U consists of a double socket arm, zinc coated u-bolt base, diamond adapter base and custom high strength composite cradle. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at the base and cradle. With a twist of the arm knob, you can move the motorcycle Rino mount to your optimum viewing position. Included in this package is hardware that will accommodate rails from 0.50" to 1.25" in diameter. Also included are black cover caps to be placed over the exposed ends of the u-bolt and a composite adapter that can narrow the rail to a minimum width of 0.5".
| hardware included |
Assembly Hardware |
| clamp range |
.5" - 1.25" diameter |
| socket to socket length |
3" |
| ball size |
B Size (1") |
| weight capacity |
Standard Use: 2 lbs |
| materials |
Marine-grade aluminum |
| packaging type |
Poly Bag |
| Weight |
0.367 kg |
Consists of
nuvi 52
nuvi 52LM
nuvi 54
nuvi 54LM
nuvi 55
nuvi 56
nuvi 56LMT
nuvi 57
nuvi 57LM
nuvi 57LMT
nuvi 58LMT
