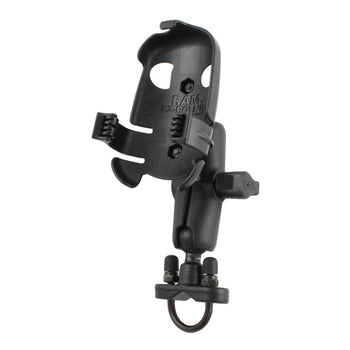

RAM® U-Bolt Double Ball Mount for Magellan eXplorist 510, 610 & 710
Part#:RAM-B-149Z-MA14 UPC:793442933288 Patented & Pats. Pend.
Ball Icon B SIZE
Arm Icon MED ARM
1 139 kr

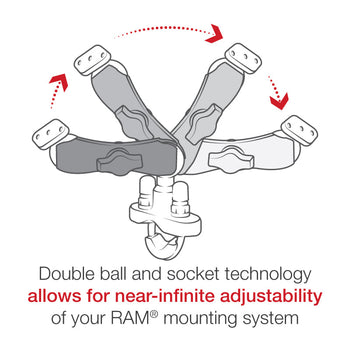

The RAM-B-149Z-MA14 consists of a double socket arm, zinc coated u-bolt base, diamond adapter base and custom high strength composite cradle for the Magellan eXplorist 510, 610 and 710. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at the base and cradle. With a twist of the arm knob, you can move the Magellan eXplorist motorcycle mount to your optimum viewing position. Included in this package is hardware that will accommodate rails from 0.50" to 1.25" in diameter. Also included are black cover caps to be placed over the exposed ends of the u-bolt and a composite adapter that can narrow the rail to a minimum width of 0.5".
hardware included

Assembly Hardware
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer

clamp range

.5" - 1.25" diameter

socket to socket length

3"

ball size

B Size (1")

weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials

Marine-grade aluminum
High strength composite

packaging type

Retail Bag

Weight

0.308 kg

eXplorist 510

eXplorist 610

eXplorist 710
