RAM® Twist-Lock™ Suction Cup Mount with Round Plate & 1/4"-20 Stud
RAM® Twist-Lock™ Suction Cup Mount with Round Plate & 1/4"-20 Stud
B SIZE
MED ARM
1 019 kr

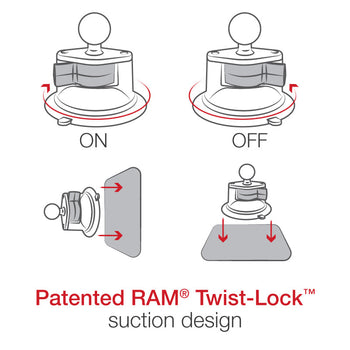

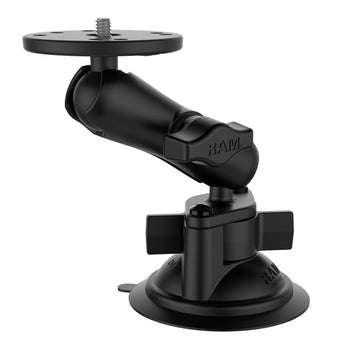

The RAM-B-166-202AU consists of a 3.3" diameter suction cup twist lock base, double socket arm and round base adapter that contains a 1/4"-20 male camera thread. The suction cup base is designed to have a strong hold on glass and non-porous plastic surfaces, including RAM adhesive disks. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm this allowing for almost infinite adjustment and perfect viewing angles. The camera base contains a 1" rubber ball that is connected to a 2.5" diameter round base. Also, included is a 1/4"-20 threaded steel stud, centered, the round base provides support and stability for cameras that rest on top of it. The male 1/4"-20 threaded steel stud will connect to any standard female thread found on camcorders and digital cameras.
| hardware included |
Assembly Hardware |
| product dimensions |
Overall Height: 6.69" |
| suction size |
3.3" Diameter |
| socket to socket length |
3" |
| hole pattern |
4-Hole AMPS: 1.181" x 1.496" |
| thread pitch |
1/4"-20 x .25" |
| plate size |
2.5" Diameter |
| ball size |
B Size (1") |
| weight capacity |
Standard Use: 2 lbs |
| materials |
Marine-grade aluminum |
| packaging type |
Poly Bag |
| Weight |
0.308 kg |
| Additional Information |
*The rubber material used in suction cups is considered a general wear item and is not covered under the lifetime warranty. Learn more about the RAM® warranty policy here.
|
Consists of
that contain 1/4"-20 Female Threaded Hole
