UNPKD RAM SUCTION MOUNT AMPS BASE
Part#:RAM-B-166-C-347U-TOM1 UPC:793442945069 Patented
Ball Icon B SIZE
Arm Icon LONG ARM
1 159 kr

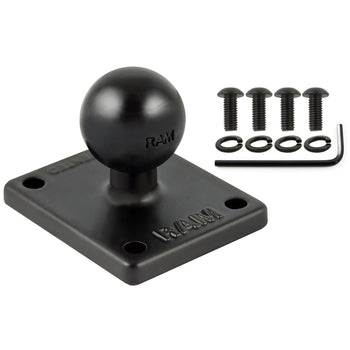

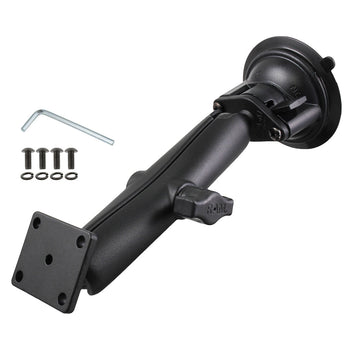

The RAM-B-166-C-347U-TOM1 consists of a long length B-size arm with a suction cup base and recatgular base with Universal AMPS hole pattern. This mount also includes all of the hardware needed to bolt that rectangular base to a TomTom Rider 2 or Urban Rider.
The RAM-B-166-C-347U-TOM1 consists of a long length B-size arm with a suction cup base and recatgular base with Universal AMPS hole pattern. This mount also includes all of the hardware needed to bolt that rectangular base to a TomTom Rider 2 or Urban Rider.
hardware included

Assembly Hardware
(4) M5 x 12mm Machine Screws
(4) M5 Stainless Steel Lock Washers
(1) M3 Hex Key Wrench
product dimensions

Overall Height: 9"
suction size

3.3" Diameter
socket to socket length

5.31"
hole pattern

4-Hole AMPS: 1.181" x 1.496"
ball size

B Size (1")
weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials

Marine-grade aluminum
High strength composite
packaging type

Poly Bag
Weight

0.417 kg
