UNPKD RAM SUCTION MNT RAM X-GRIP 12 TABLETS
Part#:RAM-B-166-UN11U UPC:793442946776 Patented
Ball Icon B SIZE
Arm Icon MED ARM
2 769 kr

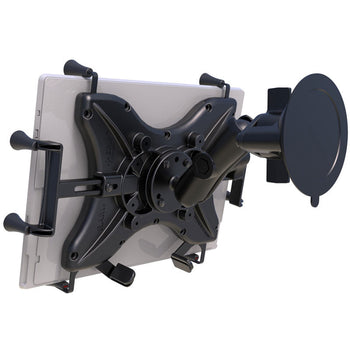

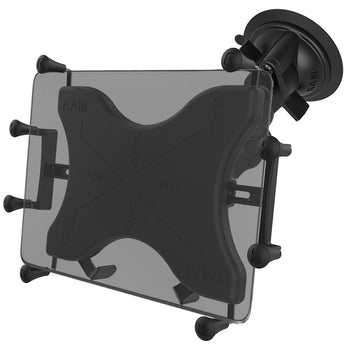

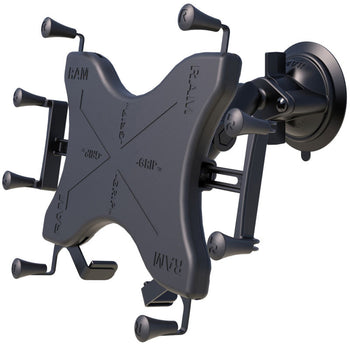

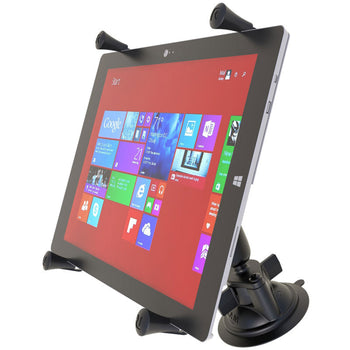

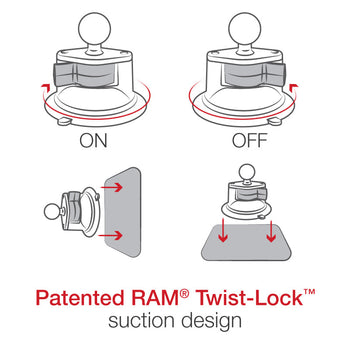

The RAM-B-166-UN11U consists of a 3.3" diameter suction cup twist lock base, double socket arm, round base adapter and universal X-Grip® clamping cradle for 12" tablets. The suction cup base is designed to have a strong hold on glass and non-porous plastic surfaces. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The X-Grip® clamping cradle consists of a composite spring loaded cradle, expandable grip arms and additional bottom support keeper. Included are extra easy access grip knobs, located on the back of the cradle for quick release of your tablet. The X-Grip® clamping cradle expands and contracts for perfect fit of most 12" tablets with or without sleeves, as well as some smaller tablets. Please verify dimensions of your tablet below for compatibility with the X-Grip®. The X-Grip® cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.

The RAM-B-166-UN11U consists of a 3.3" diameter suction cup twist lock base, double socket arm, round base adapter and universal X-Grip® clamping cradle for 12" tablets. The suction cup base is designed to have a strong hold on glass and non-porous plastic surfaces. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The X-Grip® clamping cradle consists of a composite spring loaded cradle, expandable grip arms and additional bottom support keeper. Included are extra easy access grip knobs, located on the back of the cradle for quick release of your tablet. The X-Grip® clamping cradle expands and contracts for perfect fit of most 12" tablets with or without sleeves, as well as some smaller tablets. Please verify dimensions of your tablet below for compatibility with the X-Grip®. The X-Grip® cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.
hardware included

Assembly Hardware
(1) Optional Tether
(1) Glue Tube for Rubber Caps

holder dimensions

Max Height: 10.25" (using optional supports)
Width Range: 7.25" - 8.75"
Max Depth: .875"

suction size

3.3" Diameter

socket to socket length

3"

ball size

B Size (1")

weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials

Marine-grade aluminum
High strength composite

packaging type

Poly Bag

Weight

0.816 kg

iPad Pro 12.9 (1st Gen)

iPad Pro 12.9 (2nd Gen)

iPad Pro 12.9 (3rd Gen)

iPad Pro 12.9 (4th Gen)

iPad Pro 12.9 (5th Gen)

iPad Pro 12.9 (6th Gen)

Latitude 5285

Pixelbook

Elite X2 1012 G1

Elite X2 1012 G2

Pro X2 612

Pro X2 612 G1

IdeaTab Lynx K3011

Miix 720

Yoga A12

Surface 3

Surface Book

Surface Pro (2017)

Surface Pro 3

Surface Pro 4

Surface Pro 5

Surface Pro 6

Surface Pro 7

Surface Pro 8

Surface Pro X

Galaxy Book 12"

Galaxy Pro 12.2

Galaxy TabPro S

Galaxy Tab S8 Ultra

R12 XSLATE
