RAM® Twist-Lock™ Suction Cup Mount with Uniden Hardware
Part#:RAM-B-166-UND1U UPC:793442932663 Patented
Ball Icon B SIZE
Arm Icon MED ARM
949 kr

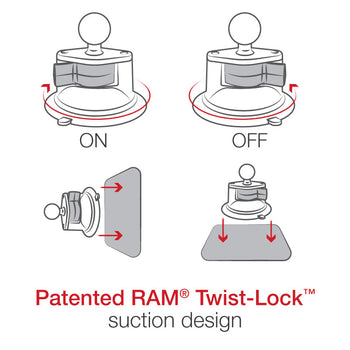

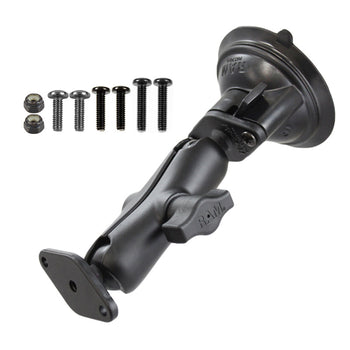

The RAM-B-166-UND1U consists of a medium length B-size arm with our 3.3" diameter twist lock suction cup and diamond base with hardware for Uniden devices.
hardware included

Assembly Hardware
(2) #8-32 x 1/2" Machine Screws
(2) #8-32 x 5/8" Machine Screws
(2) #8-32 x .75" Screws
(2) #8-32 Nylock Nuts

product dimensions

Overall Height: 6.69"

suction size

3.3" Diameter

socket to socket length

3"

hole pattern

2-Hole AMPS: 1.912"

ball size

B Size (1")

weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials

Marine-grade aluminum
High strength composite

packaging type

Poly Bag

Weight

0.29 kg

Additional Information
*The rubber material used in suction cups is considered a general wear item and is not covered under the lifetime warranty. Learn more about the RAM® warranty policy here.

Consists of

RAM® Double Socket Arm - B Size Medium RAM-B-201U
Ball Icon B SIZE
Arm Icon MED ARM
369 kr
RAM® Diamond Ball Base - B Size RAM-B-238U
Ball Icon B SIZE
Arm Icon ARM
179 kr
