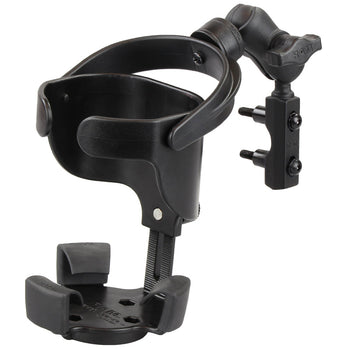

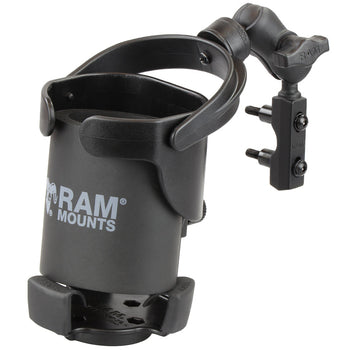

RAM® Level Cup™ XL 32oz Drink Holder with Brake/Clutch Reservoir Base
Part#:RAM-B-174-A-417U UPC:793442952982 Patented
Ball Icon B SIZE
Arm Icon SHORT ARM
1 699 kr

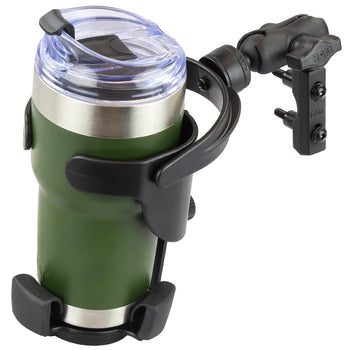

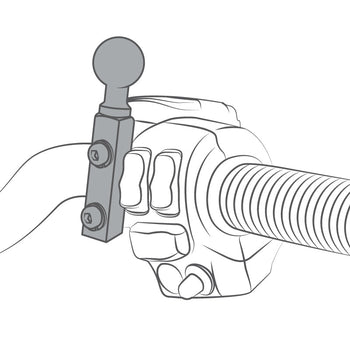

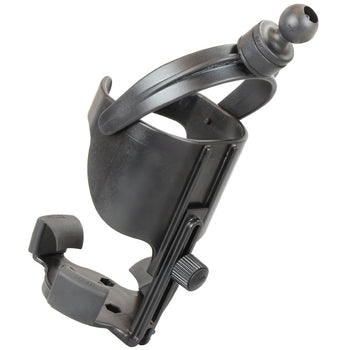

Designed for bigger insulated cups, plastic water bottles or even your reliable steel coffee cup, the Level Cup XL keeps your drink upright, regardless of the conditions. This kit includes a short arm and a combination base that attaches to rails or brake/clutch reservoirs on motorcycles and ATVs. The mounting base can accommodate rails from .5” through 1.25” and most standard handlebar sizes. The oversized opening cradles the biggest of gulps and the adjustable bottom piece moves up and down to accommodate taller cups. The rubber feet flex to fit various size cups as well. RAM® Mounts has refined the self-leveling action to keep your cups full.
hardware included

(3) Rubber Support Fins
(1) Glue Tube for Rubber Fins
(2) M6 x 55mm Hex Bolts
(2) #1/4-20 x 2" Hex Bolts
(2) 1/4"-20 x 2.5" Hex Bolts
(2) 1/2" Spacers
(2) 1/4" Split Lock Washers
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer

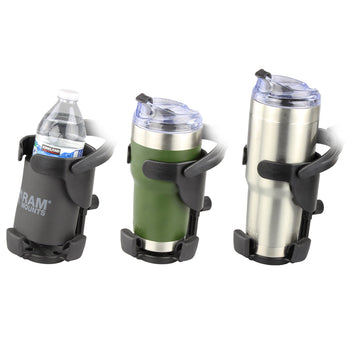

drink size

12-32 oz

clamp range

.5" - 1.25" diameter

socket to socket length

1.75"

ball size

B Size (1")

weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials

Marine-grade aluminum
High strength composite

packaging type

Poly Bag

Weight

0.544 kg
