UNPKD RAM MOTORCYCLE GARMIN NUVI 1490T
Part#:RAM-B-174-GA35U UPC:793442929854 Patented
Ball Icon B SIZE
Arm Icon MED ARM
1 129 kr

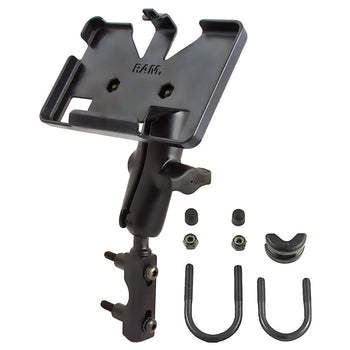

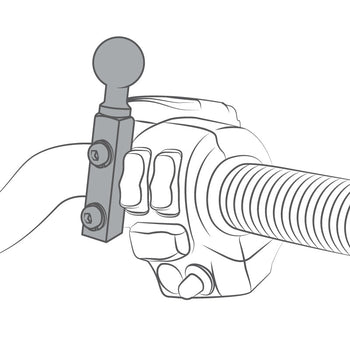

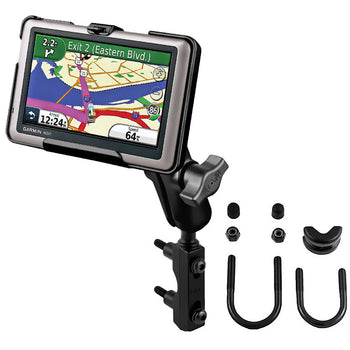

The RAM-B-174-GA35U consists of a double socket arm, hardware for mounting to both brake/clutch reservoirs and rails that are 0.5" to 1.25" in diameter, diamond base adapter and custom form-fitted cradle. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at both ends of the socket arm; this with a twist of the arm knob, allows you to move the cradle to your optimum viewing position. The mounting hardware for brake/clutch reservoirs include both standard and metric mounting bolts.
The RAM-B-174-GA35U consists of a double socket arm, hardware for mounting to both brake/clutch reservoirs and rails that are 0.5" to 1.25" in diameter, diamond base adapter and custom form-fitted cradle. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at both ends of the socket arm; this with a twist of the arm knob, allows you to move the cradle to your optimum viewing position. The mounting hardware for brake/clutch reservoirs include both standard and metric mounting bolts.
hardware included

Assembly Hardware
(2) M6 x 55mm Hex Bolts
(2) #1/4-20 x 2" Hex Bolts
(2) 1/4"-20 x 2.5" Hex Bolts
(2) 1/2" Spacers
(2) 1/4" Split Lock Washers
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer
clamp range

.5" - 1.25" diameter
socket to socket length

3"
ball size

B Size (1")
weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials

Marine-grade aluminum
High strength composite
packaging type

Poly Bag
Weight

0.231 kg

nuvi 1440

nuvi 1450

nuvi 1490T
