RAM® Brake/Clutch Reservoir Mount for TomTom Start 55, XXL 535 + More
Part#:RAM-B-174-TO10U UPC:793442931963 Patented
Ball Icon B SIZE
Arm Icon MED ARM
1 229 kr

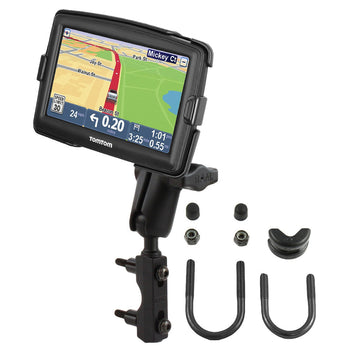

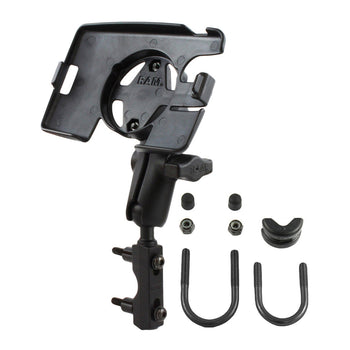

The RAM-B-174-TO10U consists of a double socket arm, hardware for mounting to both brake/clutch reservoirs and rails that are 0.5" to 1.25" in diameter, diamond adapter base and custom high strength composite cradle for the TomTom XXL series GPS. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm this allowing for almost infinite adjustment and perfect viewing angles.
hardware included

Assembly Hardware
(2) M6 x 55mm Hex Bolts
(2) #1/4-20 x 2" Hex Bolts
(2) 1/4"-20 x 2.5" Hex Bolts
(2) 1/2" Spacers
(2) 1/4" Split Lock Washers
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer
clamp range

.5" - 1.25" diameter
socket to socket length

3"
ball size

B Size (1")
weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials

Marine-grade aluminum
High strength composite
packaging type

Poly Bag
Weight

0.395 kg

Consists of

RAM® Form-Fit Cradle for TomTom Start 55, XXL 535, XXL 550 + More RAM-HOL-TO10U
339 kr
RAM® Motorcycle Brake/Clutch Reservoir Mount with Diamond Plate - Medium RAM-B-174U
Ball Icon B SIZE
Arm Icon MED ARM
939 kr

Start 55

Start 55 M

Start 55 TM

XXL 535T

XXL 540 Series

XXL 540 WTE Series

XXL 550 Series
