RAM® Motorcycle Brake/Clutch Reservoir Mount with Diamond Plate - Medium
Part#:RAM-B-174U UPC:793442901812 Patented
Ball Icon B SIZE
Arm Icon MED ARM
939 kr

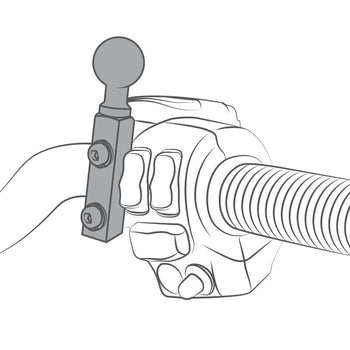

The RAM-B-174U consists of a 1" diameter rubber ball, double socket arm, hardware for mounting to both brake/clutch reservoirs and rails that are 0.5" to 1.25" in diameter. The mounting hardware for brake/clutch reservoirs include both standard and metric mounting bolts. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at both ends of the socket arm this with a twist of the arm knob allows you to move the mount to your optimum viewing position.
hardware included

(2) M6 x 55mm Hex Bolts
(2) #1/4-20 x 2" Hex Bolts
(2) 1/4"-20 x 2.5" Hex Bolts
(2) 1/2" Spacers
(2) 1/4" Split Lock Washers
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer

clamp range

.5" - 1.25" diameter

socket to socket length

3"

hole pattern

2-Hole AMPS: 1.912"

ball size

B Size (1")

weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials

Marine-grade aluminum

packaging type

Poly Bag

Weight

0.377 kg

Consists of

RAM® Diamond Ball Base - B Size RAM-B-238U
Ball Icon B SIZE
Arm Icon ARM
179 kr
RAM® Double Socket Arm - B Size Medium RAM-B-201U
Ball Icon B SIZE
Arm Icon MED ARM
369 kr
