RAM® Offset Reservoir Cover Double Ball Mount
RAM® Offset Reservoir Cover Double Ball Mount
B SIZE
MED ARM
989 kr

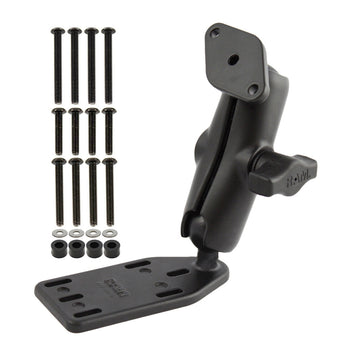

The RAM-B-183U consists of a brake/clutch reservoir cover plate (1" ball off-set), STANDARD length double socket arm and diamond base adapter. The base fits cleanly over your existing brake/clutch reservoir cover with the 1" ball offset. Made of die cast aluminum with an over molded rubber ball, both form and function are unsurpassed. Installation is simple and all necessary hardware is included. The mount is NOT an additional reservoir cover, but instead a plate shaped similarly to the cover that mounts above the cover using the covers screw holes and longer screws. The kit actually comes with 3 sets of screws of differing lengths. The center 2 slots are 2 7/16 inches center to center and are just under a 1/2 inch long.
| hardware included |
(4) M4 x 20mm Machine Screws |
| product dimensions |
Overall Height: 5" |
| socket to socket length |
3" |
| hole pattern |
2-Hole AMPS: 1.912" |
| ball size |
B Size (1") |
| weight capacity |
Standard Use: 2 lbs |
| materials |
Marine-grade aluminum |
| packaging type |
Poly Bag |
| Weight |
0.316 kg |
| Additional Information |
This mount is not compatible with the 2016 BMW R1200RT.
|
