RAM® Handlebar U-Bolt Mount for Garmin zumo 400-660 - Short
RAM® Handlebar U-Bolt Mount for Garmin zumo 400-660 - Short
B SIZE
SHORT ARM
799 kr

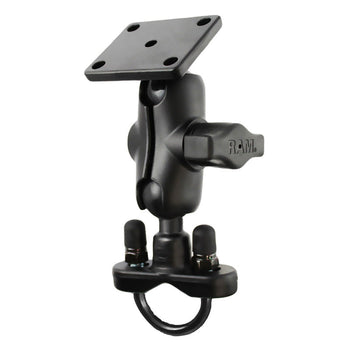

The RAM-B-184U consists of a zinc coated u-bolt base, double socket arm and 2" x 1.7" rectangular base that contains the universal AMPs hole pattern. The diamond adapter base has a hole pattern that matches the industry standard AMPS hole pattern and will connect to a large variety of RAM Mount and third party cradles. Included in this package is hardware that will accommodate rails from 0.50" to 1.25" in diameter. A composite rail adapter can narrow the rail to a minimum width of 0.5”. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the short length double socket arm this allowing for almost infinite adjustment and perfect viewing angles.
| hardware included |
(1) 1/4"-20 U-Bolt for .5" - 1" Rails |
| clamp range |
.5" - 1.25" diameter |
| socket to socket length |
1.75" |
| hole pattern |
4-Hole AMPS: 1.181" x 1.496" |
| ball size |
B Size (1") |
| weight capacity |
Standard Use: 2 lbs |
| materials |
Marine-grade aluminum |
| packaging type |
Poly Bag |
| Weight |
0.254 kg |
Consists of
RAM® Handlebar U-Bolt Base for Rails 0.5" to 1.25" in Diameter - B Size
RAM-B-231ZU
B SIZE
ARM
369 kr
B SIZE
ARM
GPSMAP 276Cx
Tread
zumo 400
zumo 450
zumo 500
zumo 550
zumo 590
zumo 660
zumo XT
