RAM® Drill-Down Mount with 1/4"-20 Threaded Camera Adapter
RAM® Drill-Down Mount with 1/4"-20 Threaded Camera Adapter
B SIZE
SHORT ARM
689 kr

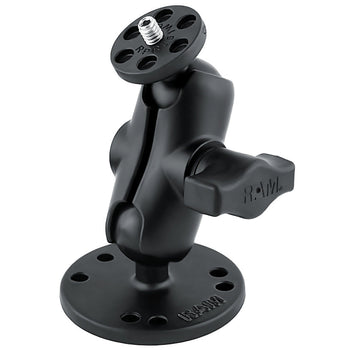

The RAM-B-202-A-366U consists of a 2.5" diameter round base that contain the universal AMPS hole pattern, SHORT double socket arm and 1" ball, connected to a round plate with 1/4"-20 camera thread. The male 1/4"-20 threaded steel stud will connect to any standard female thread found on camcorders, digital cameras and POV cameras. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm this allowing for almost infinite adjustment and perfect viewing angles.
| socket to socket length |
1.75" |
| hole pattern |
4-Hole AMPS: 1.181" x 1.496" |
| plate size |
2.5" Diameter |
| ball size |
B Size (1") |
| weight capacity |
Standard Use: 2 lbs |
| materials |
Marine-grade aluminum |
| packaging type |
Poly Bag |
| Weight |
0.172 kg |
Consists of
RAM® Ball Adapter with 1/4"-20 Threaded Stud for Action Cameras - B Size
RAP-B-366U
B SIZE
ARM
239 kr
B SIZE
ARM
that contain 1/4"-20 Female Threaded Hole
