RAM® Chrome Motorcycle Brake/Clutch Reservoir Ball Base
Part#:RAM-B-309-1CHU UPC:793442130939
Ball Icon B SIZE
Arm Icon ARM
859 kr

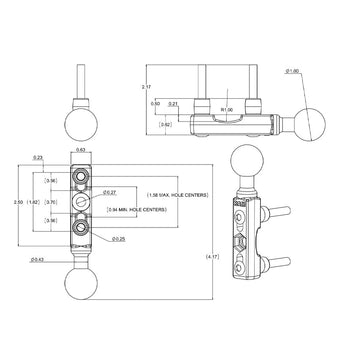

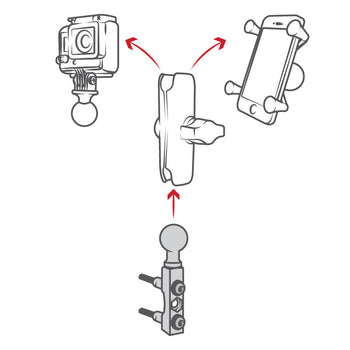

The RAM-B-309-1CHU connects to your handlebar clutch/brake clamp, left or right side, and holds one 1" diameter mounting ball. The chrome base fits the control clamps on your motorcycle with 40mm x 6mm stainless steel hardware, provided in the kit. To see if the RAM-B-309-1CHU base will mount to your motorcycle, check the hole spacing of the base against your clutch/brake reservoir. The holes centers have a minimum width of 0.94" and a maximum of 1.58". This base allows for an additional mount using the RAM® Motorcycle 1" Ball Adapter.
hardware included

(2) M6 x 55mm Hex Bolts
(2) #1/4-20 x 2" Hex Bolts
(2) 1/4"-20 x 2.5" Hex Bolts
(2) 1/2" Spacers
(2) 1/4" Split Lock Washers
ball size

B Size (1")
weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials

Marine-grade aluminum
packaging type

Poly Bag
Weight

0.095 kg
