RAM® Small Gas Tank Ball Base for Motorcycles
Part#:RAM-B-410U UPC:793442951282
Ball Icon B SIZE
Arm Icon ARM
719 kr

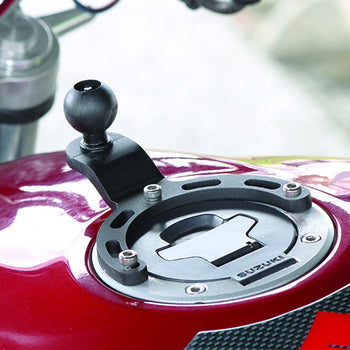

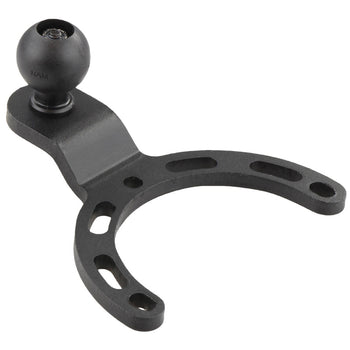

The RAM Gas Tank base is a low-profile way to get a unique perspective from your camera or to attach your electronic device where it can be quickly accessible. This powder coated aluminum base mounts directly to the stock gas tank of any listed compatible motorcycle. We include the hardware you need to mount to the fill port as well.
hardware included

Assembly Hardware
(3) M6-1.0 x 25mm Socket Head Cap Screw
(3) M5-.8 x 35mm Socket Head Cap Screw
(4) M5-.8 x 45mm Socket Head Cap Screw
(3) M5-.8 x 25mm Socket Head Cap Screw
(3) M5-.8 x 20mm Socket Head Cap Screw
(3) M5-.8 x 16mm Socket Head Cap Screw
(4) M5 Stainless Steel Washers
(3) M6 Stainless Steel Washers

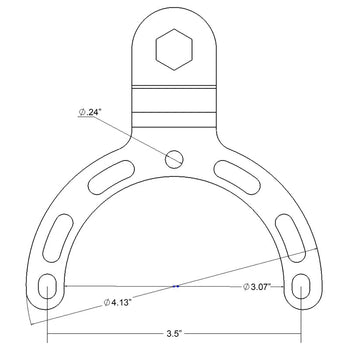

hole pattern

See Drawing

ball size

B Size (1")

weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials

Marine-grade aluminum

packaging type

Poly Bag

Weight

0.204 kg

Additional Information
To ensure proper fit use the measuring guide. Tank bolts distance, for this part will be 3.5".
