RAM® Large Gas Tank Mount with Diamond Plate
Part#:RAM-B-411-A-238U UPC:793442952746
Ball Icon B SIZE
Arm Icon SHORT ARM
1 199 kr

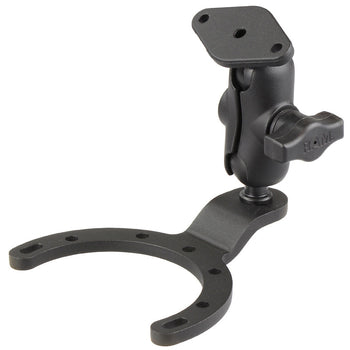

The RAM Gas Tank base is a low-profile way to get a unique perspective from your camera or to attach your electronic device where it can be quickly accessible. This powder coated aluminum base mounts directly to the stock gas tank of any listed compatible motorcycles. We include the hardware you need to mount to the fill port as well. Included is the B size 1" ball on a diamond plate to mount RAM GPS cradles or any other mount that uses the Diamond connection.
hardware included

Assembly Hardware
(4) M5-.8 x 40mm Socket Head Cap Screws
(3) M5-.8 x 25mm Socket Head Cap Screws
(4) M5 Stainless Steel Washers

socket to socket length

1.75"

hole pattern

2-Hole AMPS: 1.912"

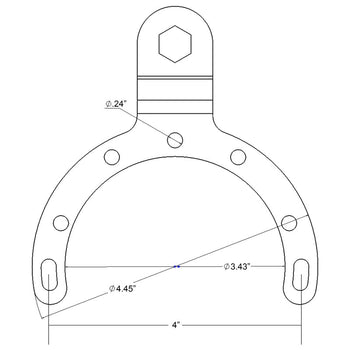

See Drawing

ball size

B Size (1")

weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials

Marine-grade aluminum

packaging type

Poly Bag

Weight

0.254 kg

Additional Information
To ensure proper fit use the measuring guide. Tank bolts distance, for this part will be 4".

Consists of

RAM® Double Socket Arm - B Size Short RAM-B-201U-A
Ball Icon B SIZE
Arm Icon SHORT ARM
329 kr
RAM® Diamond Ball Base - B Size RAM-B-238U
Ball Icon B SIZE
Arm Icon ARM
179 kr
