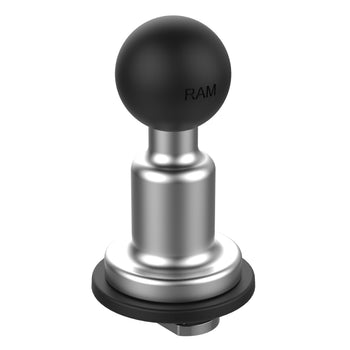

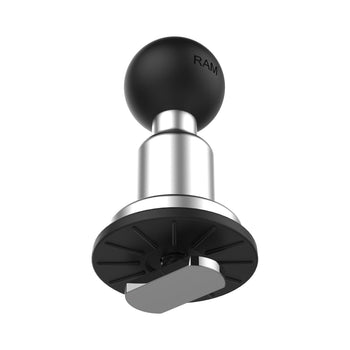

RAM® Aluminum Track Ball Base with T-Bolt Attachment - B Size
Part#:RAM-B-463-TRA1U UPC:793442930973
Ball Icon B SIZE
Arm Icon ARM
329 kr
  • Designed for track mounting systems including the RAM® Tough-Track™ includes 1" B size rubber ball with pin-lock and 1/4-20" threaded hole with T-bolt
  • Features a rubber friction washer and a stainless steel T-bolt simply insert into your track and twist the ball clockwise to tighten
  • Made of marine-grade aluminum, stainless steel components for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

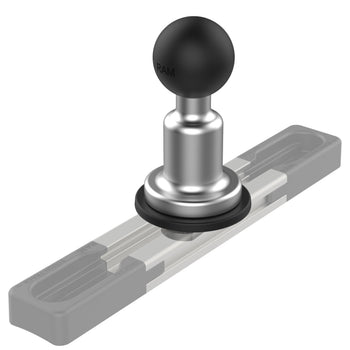

The RAM® Track Ball™ is made up of a B size 1" ball molded to a marine-grade aluminum base, a rubber friction washer and a stainless steel T-bolt for sliding into virtually any track system. Simply insert or slide the Track Ball™ into your track and twist the ball clockwise to tighten in place. Twist counterclockwise to loosen or adjust the ball.
hardware included

(1) Friction Washer
(1) 1/4"-20 x 7/8" T-Bolt
product dimensions

Plate Diameter: 1.25"
Thread Depth: .875"
t bolt dimensions

.48" x .95"
ball size

B Size (1")
weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials

Marine-grade aluminum
Stainless steel
packaging type

Poly Bag
Weight

0.068 kg

Consists of

RAM® Aluminum Pin-Lock Ball Adapter with 1/4"-20 Female Thread - B Size RAM-B-463U
Ball Icon B SIZE
Arm Icon ARM
279 kr
RAM® T-Bolt 1/4"-20 x 7/8" Long RAP-354TU
59 kr
