RAM® Double Ball Mount with Two Large Round Plates - D Size Medium
RAM® Double Ball Mount with Two Large Round Plates - D Size Medium
D SIZE
MED ARM
3 129 kr

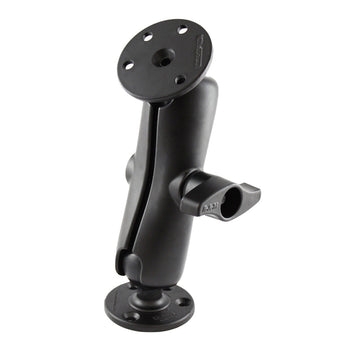

The RAM-D-101U consists of (2 qty) 3.68" diameter round bases and STANDARD length double socket arm. The 3.68" diameter round bases have pre-drilled holes, including two holes at 180 degrees and three holes at 120 degrees. Designed into the mount is a 2.25" diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm.
| product dimensions |
Overall Height: 11.125" |
| socket to socket length |
6.88" |
| hole pattern |

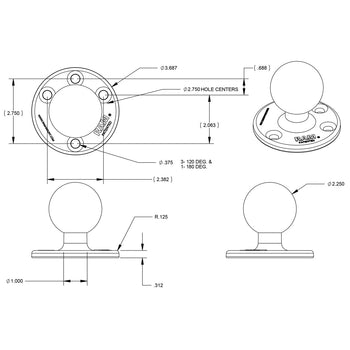

See Drawing |
| plate size |
3.68" Diameter |
| ball size |
D Size (2.25") |
| weight capacity |
Standard Use: 6 lbs |
| materials |
Marine-grade aluminum |
| packaging type |
Poly Bag |
| Weight |
1.792 kg |
