RAM W/ 3 X 11 BASE & 3 3/4 BASE MILIT
Part#:RAM-D-111-MIU UPC:793442903861
Ball Icon D SIZE
Arm Icon MED ARM
3 629 kr

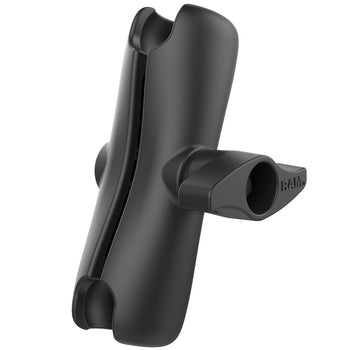

The RAM-D-111-MIU consists of a 3.68" diameter round base, STANDARD LENGTH double socket arm, jam nut and 11" x 3" rectangular base. The round base contains pre-drilled holes, including two holes at 180 degrees and three holes at 120 degrees. The rectangle base contains different combinations of pre-drilled holes which will match up to many electronic devices and mounts, including Marine GPS, CB Radios, Ham Radios, Gimbal Brackets and more.

The RAM-D-111-MIU consists of a 3.68" diameter round base, STANDARD LENGTH double socket arm, jam nut and 11" x 3" rectangular base. The round base contains pre-drilled holes, including two holes at 180 degrees and three holes at 120 degrees. The rectangle base contains different combinations of pre-drilled holes which will match up to many electronic devices and mounts, including Marine GPS, CB Radios, Ham Radios, Gimbal Brackets and more.
product dimensions

Overall Height: 11.5"

socket to socket length

6.88"

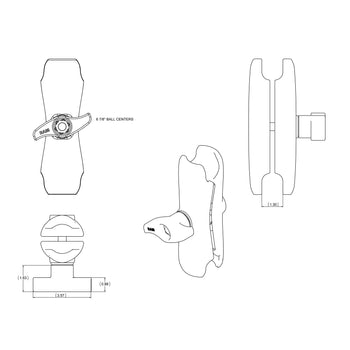

hole pattern

See Drawings

plate size

Top Plate: 3" x 11"
Bottom Plate: 3.68" Diameter

ball size

D Size (2.25")

weight capacity

Standard Use: 6 lbs
Heavy-Duty Use: 5 lbs

materials

Marine-grade aluminum

packaging type

Poly Bag

Weight

1.946 kg

Additional Information
The 11" x 3" rectangle base is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.

ECHOMAP Ultra 122sv

ECHOMAP Ultra 126sv

GPSMAP 1222/xsv Touch

GPSMAP 1242xsv/Touch

Fishfinders and GPS Chartplotters

HDS Carbon 9

HDS Carbon 12

Elite-9 CHIRP

Elite-9 Ti

Elite-9 Ti²

Elite-12 Ti

Elite-12 Ti²

Fishfinders and GPS Chartplotters

800 & 900 Series

Fishfinders and GPS Chartplotters
