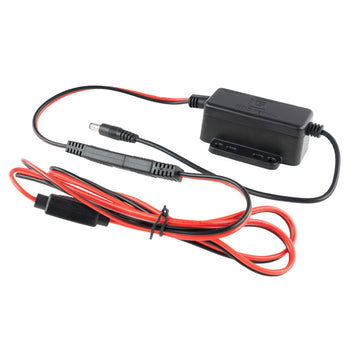

GDS® 10-32VDC Input (14VDC Output) Hardwire Charger with Male DC 5.5mm
Part#:RAM-GDS-CHARGE-V19U UPC:793442024221
649 kr
  • Hardwire charger includes male 5.5mm barrel connector 10V-32V DC input range, 14VDC output
  • When upgrading devices, avoid rewiring by unplugging power connector and attaching new charger components
  • GDS® Ecosystem™ keeps devices protected, connected, and charged in nearly any application
  • Backed by a 3-year warranty
The GDS® 10-32VDC Input (14VDC Output) Hardwire Charger with Male DC 5.5mm (RAM-GDS-CHARGE-V19U) is the ideal solution for providing power to any RAM® or GDS® DC powered docking station. This hardwire charger has an input of 10-32VDC input & 14VDC output, ideal for most any vehicle applications. The GDS® Hardwire chargers were thoughtfully designed with long-term solutions in mind so when it comes time to upgrade, you avoid any rewiring by simply unplugging the power connector and attaching the new charger components.
packaging type

Poly Bag
input voltage

10-32VDC
output voltage

14VDC
output current

3.5A max
input connector

Male 5.5mm OD x 2.5mm ID Barrel Connector
input cable length

1.2 Meters including 2 Pole Flat Marine Connector
output cable length

.2 Meters
operating temperature

-10°C to +70°C
storage temperature

-40°C to +70°C
regulatory

Over Voltage Protection
Short Circuit Protection
Reverse Polarity Protection
RoHS Compliance
WEEE Compliance
SAE J-1113-5 Load Dump (Transient Voltage)
Moisture Resistant
FCC, CE, UKCA, IC
3A Inline ATC Fuse
18AWG Copper Wire
Warranty

3 year warranty
Weight

0.0 kg
