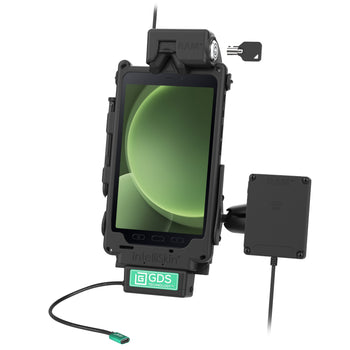

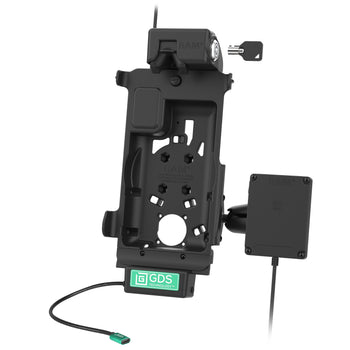

Locking GDS® Tough-Dock™ for Tab Active5 & 3 with NFC Extender
Part#:RAM-GDS-DOCKL-SAM62CP-NFCU UPC:793442811074 Patented & Pats. Pend.
6 169 kr

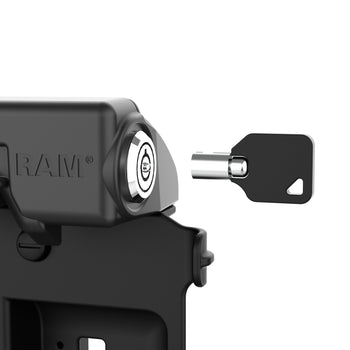

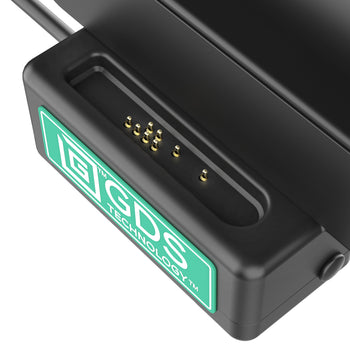

  • Spring-loaded, key-locking vehicle dock featuring GDS® Technology™ uses an integrated pogo pin connector to provide high speed charging
  • Designed specifically for the Samsung Galaxy Tab Active5 & Tab Active3 wrapped in an IntelliSkin® Next Gen protective sleeve
  • USB Type-C Female connector incorporated into the bottom docking cup provides high speed charging to the dock

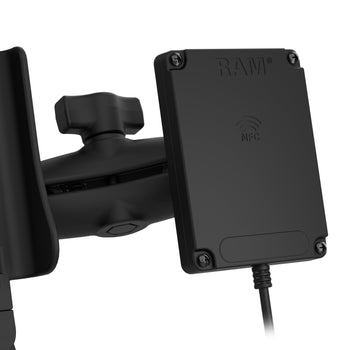

  • NFC repeater supports passage of data to a device from cards, tags, buttons, etc supports Tap To Pay, asset tracking, time tracking, attendance, and much more
  • Backed by a 3-year warranty

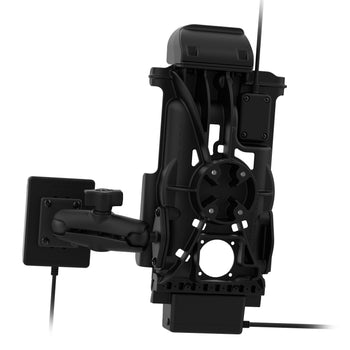

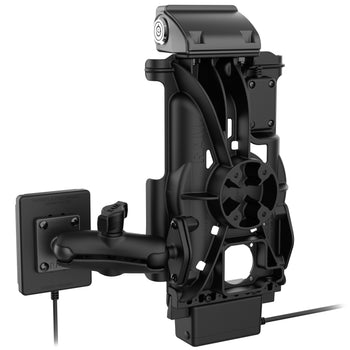

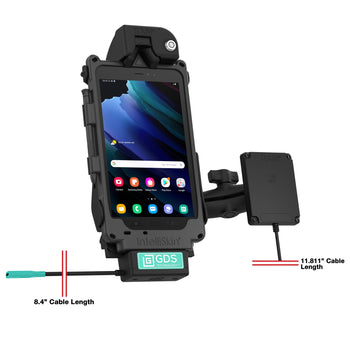

The GDS® Tough-Dock™ is the newest vehicle dock in the GDS® Tech™ line of vehicle docks with a keyed locking system designed to support the Samsung Galaxy Tab Active5 & Tab Active3 in an IntelliSkin® Next Gen protective sleeve for your fleet. This kit features a diamond ball base paired with a double socket arm that enables use of the RAM® NFC Extender. The NFC extender acts as an extension of NFC readers on the back of compatible devices, giving end users easier access to programs like Tap to Pay, asset tracking, time management, and more. Using a USB Type-C power connector, the GDS® Tough-Dock™ supports high speed charging capabilities for the Samsung Galaxy Tab Active5 & 3. The GDS® Tough-Dock™ is compatible with RAM® ball and socket systems and requires a 4-hole AMPS pattern ball adapter. The GDS® Tough-Dock™ is backed by a 3-year warranty. Always Protected. Always Connected.®
hardware included

(2) Keys
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
hole pattern

4-Hole AMPS: 1.181" x 1.496"
materials

High strength composite
Marine-grade aluminum
packaging type

Poly Bag
output voltage

5V - 12V @ 3A
power output

15W
input connector

USB Type-C
Warranty

3 year warranty
Weight

0.908 kg
Additional Information
This product will not support the GDS® Hand-Stand™. This product will not support any NFC functionality of the Tab Active2

Potential interference of NFC functionality may occur when positioned close to strong magnets.

Consists of

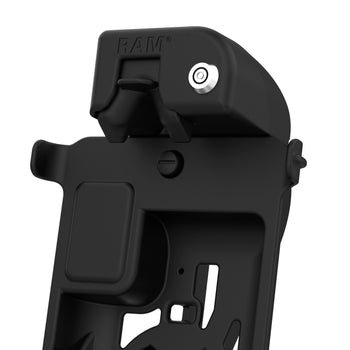

GDS® Tough-Dock™ & Cool-Dock™ Locking Top Latch RAM-GDS-DOCKLH2U
979 kr
GDS® Tough-Dock™ Body for Tab Active3 with NFC Extender RAM-GDS-DOCKB-SAM62-NFCU
3 329 kr
Sold out
GDS® Powered Dock Cup for IntelliSkin® Next Gen Tablets RAM-GDS-DOCK-V10PU
1 539 kr
Sold out
GDS® Genuine USB Type-C 3.0 Cable RAM-GDS-CAB-USBC-AMCMU
359 kr
GDS® Cable Clamp for mUSB & USB Type-C Cables RAM-GDS-CAB-CLAMP1U
129 kr
Sold out

Galaxy Tab Active3 with IntelliSkin® Next Gen

Galaxy Tab Active5 with IntelliSkin® Next Gen
