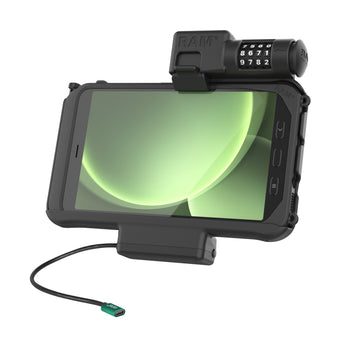

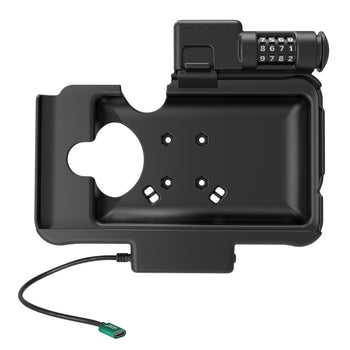

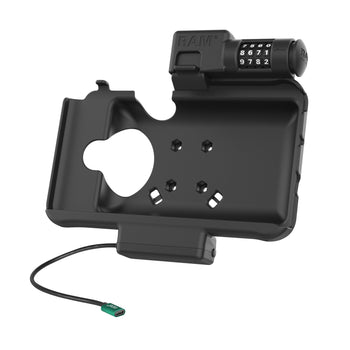

RAM® Combo Locking USB-C Powered Dock for Samsung Tab Active5 & 3
Part#:RAM-HOL-SAM58CPCLU UPC:793442022036
2 779 kr
  • Powered cradle featuring combination lock for the Samsung Galaxy Tab Active5, Tab Active3 and 2
  • RAM® Mounts Compatible™ with AMPS hole pattern components
  • Made of high-strength composite materials for durability and reliability in the most demanding environments
  • Backed by a 3-year warranty
This powered combination locking cradle for the Samsung Tab Active5, Tab Active3 and 2 has been designed to meet the demands of field workers in a variety of applications including transportation, field sales, logistics, manufacturing, and much more. Power capabilities are provided to the device through pogo pins, and you can easily rotate the device for use in portrait or landscape mode. For security and theft deterrence, this powered cradle features a combination lock that’s compatible with the RAM® Skin™ or factory device skin, as well as GDS® Hand-Stand™ and shoulder strap accessories. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the cradle to any RAM® components containing the universal AMPS hole pattern.

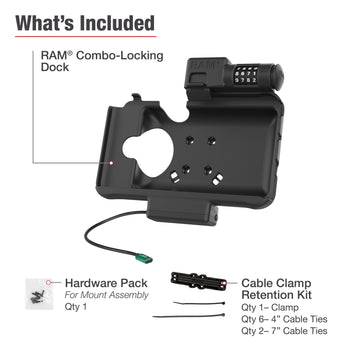

hardware included

(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(1) Optional Cable Clamp Housing
(2) Large Cable Ties
(7) Small Cable Ties
product dimensions

Width: 9.25"
Height: 7.75"
Depth: 3"
hole pattern

4-Hole AMPS: 1.181" x 1.496"
materials

High strength composite
packaging type

Poly Bag
input voltage

5.3-5.4VDC
output voltage

5VDC
power output

500mA
input connector

USB Type-C Female
input cable length

215mm
Warranty

3 year warranty
Weight

0.425 kg
Additional Information
This product will not support the "No Battery Mode" function of the Tab Active3. To support "No Battery Mode", see RAM® Tough-Case™ options here.

Consists of

GDS® Cable Clamp for mUSB & USB Type-C Cables RAM-GDS-CAB-CLAMP1U
129 kr

Tab Active5

Tab Active3

Tab Active2
