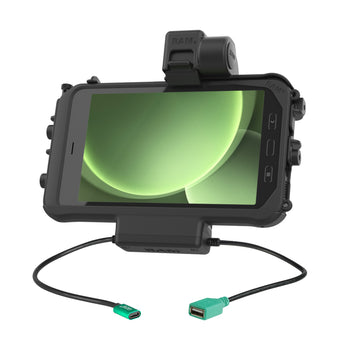

RAM® Low-Profile Power + Single USB Dock for Tab Active5 & 3
Part#:RAM-HOL-SAM58CPT-1AU UPC:793442021954
2 689 kr
  • Form-fit power + data sync dock designed specifically for the Samsung Galaxy Tab Active5 & Tab Active3 wrapped in a Samsung OEM protective case or RAM® Skin™

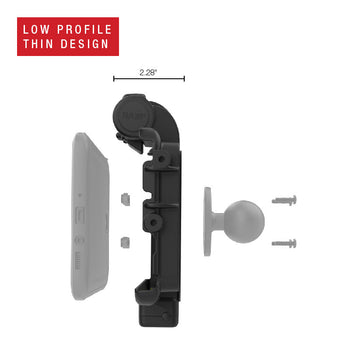

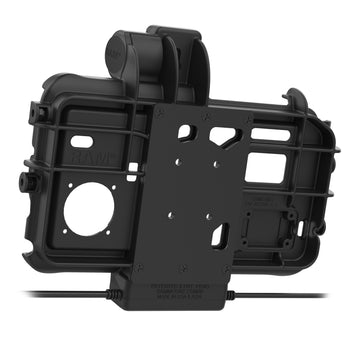

  • Slim-profile design at 2.28" depth with metal reinforcement plate

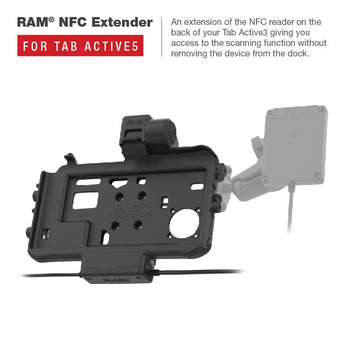

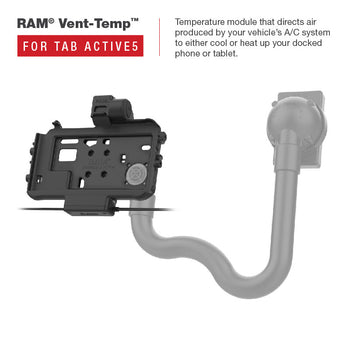

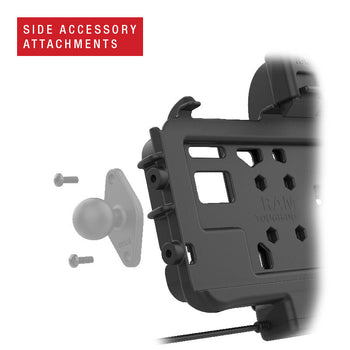

  • Compatible with most RAM® dock accessories including RAM® Vent-Temp™, RAM® NFC Extender, and side accessory attachments
  • Power delivered via USB-C connector connect a single input device via USB-A connector
  • Backed by a 3-year warranty

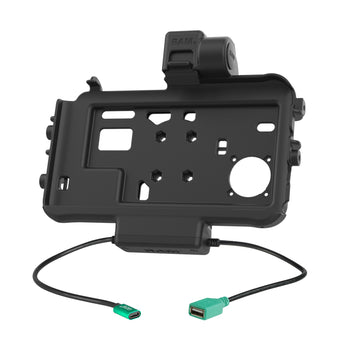

The low-profile RAM® Power + Data Dock for Samsung Tab Active5 & Tab Active3 (RAM-HOL-SAM58CPT-1AU) offers a slim profile at 2.28" in depth with a metal reinforcement plate for a smaller footprint. Power capabilities from the dock are provided to the device through pogo pin technology and integrated USB-C cable, taking advantage of the Tab Active5 & 3's pogo pad docking contacts—simply dock the device for a seamless charging experience. Add a peripheral with the built-in USB Type-A cord and connect a keyboard, barcode scanner, printer, and more. This modular dock is compatible with the RAM® Skin™ or factory device skin along with most RAM® accessories including: RAM® Vent-Temp™, RAM® NFC Extender, and side accessory attachments such as a phone mount or barcode scanner. Included is a set of four nuts and bolts to connect the dock to any RAM® components containing the universal AMPS hole pattern. Also included is a cable clamp and zip ties for cable management.
hardware included

(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(1) GDS® Genuine USB 2.0 Straight Cable
(2) Optional Cable Clamp Housings
(4) Large Cable Ties
(10) Small Cable Ties
hole pattern

4-Hole AMPS: 1.181" x 1.496"
materials

High strength composite
packaging type

Poly Bag
input voltage

5.3-5.4VDC
output voltage

5VDC
power output

500mA
input connector

USB Type-C Female
input cable length

250mm
output connector

USB 1.1 Type A
output cable length

250mm
peripheral output

500mAh
transfer speed

12Mbps
Warranty

3 year warranty
Weight

0.544 kg
Additional Information
This dock is not compatible with the GDS® Hand-Stand™, RAM® Temp-Right™, or GDS® Roto-Mag™.

Consists of

GDS® Cable Clamp for mUSB & USB Type-C Cables RAM-GDS-CAB-CLAMP1U
129 kr
Sold out

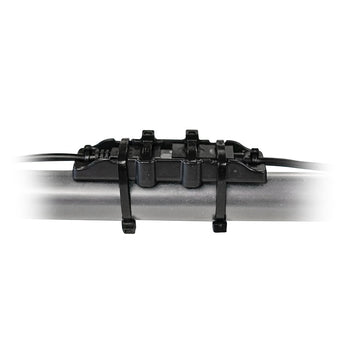

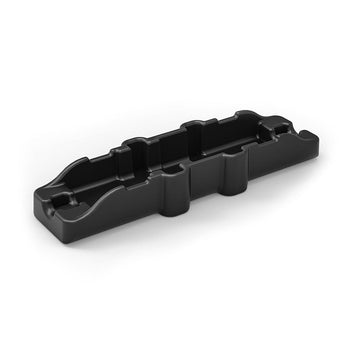

GDS® Cable Clamp for USB Type-A Cables RAM-GDS-CAB-CLAMP2U
