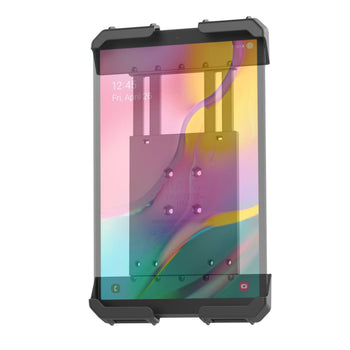

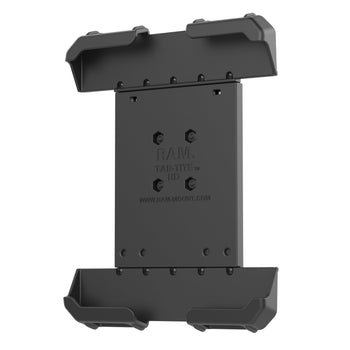

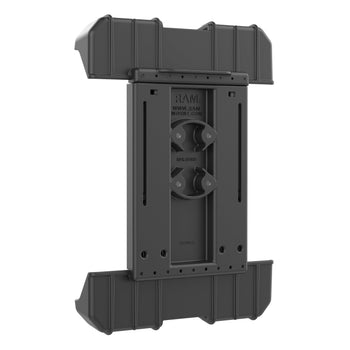

RAM® Tab-Tite™ Holder for 10.1" - 10.5" Tablets with or without Case
Part#:RAM-HOL-TAB33U UPC:793442101410 Patented
649 kr
  • Spring-loaded holder secures the Samsung Tab (S6 Lite, A7 10.4, S5e, and A 10.1) and Lenovo K10 Tablet with or without case interchangeable end cups allow you to modify the holder when upgrading devices
  • Compatible with RAM® round ball bases for attaching a double socket arm ball and socket technology allows for near-infinite adjustability
  • Made of high-strength composites for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty
The RAM® Tab-Tite™ spring-loaded, quick release holder offers a secure fit with easy access to the mounted 9"-10" tablet. The spring-loaded design makes it easy to insert and remove your tablet, while keeping it secure in a variety of applications. The custom end cups are designed to optimize the functionality of your tablet, enabling access to all buttons, ports, and tablet functions. Included is a set of four nuts and bolts to attach the holder to any RAM® components that contain the universal AMPS hole pattern. The RAM® Tab-Tite™ holder is compatible with any tablet within the listed dimensions.
hardware included

Assembly Hardware
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 x 1/2" Machine Screws
(4) #8-32 Nylock Nuts
holder dimensions

Height Range: 9.55" - 11.8"
Width Range: 5.5" - 6.95"
Depth Range: .2" - .66" max
hole pattern

4-Hole AMPS: 1.181" x 1.496"
materials

High strength composite
packaging type

Poly Bag
Weight

0.277 kg

Consists of

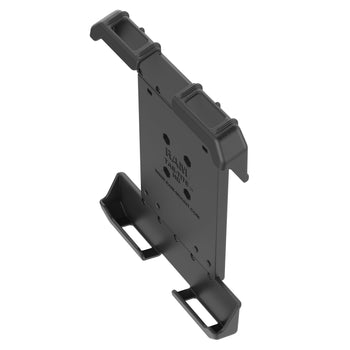

RAM® Tab-Tite™ Backplate with Hardware RAM-HOL-ACU
489 kr

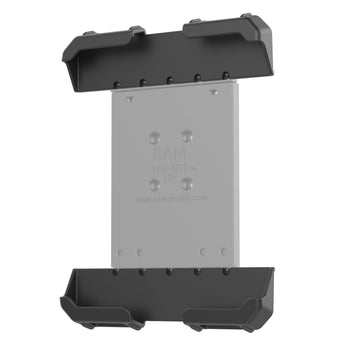

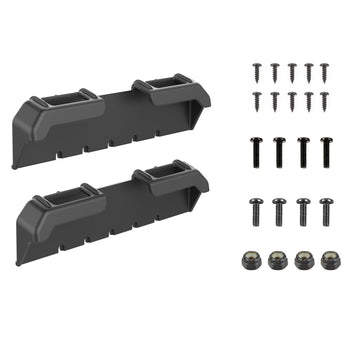

RAM® Tab-Tite™ End Cups for 10.1" - 10.5" Tablets with or without Case RAM-HOL-TAB33-CUPSU
299 kr

K10 Tablet with or without case

Tab A 10.1 (2016) with or without case

Tab A7 10.4 with or without case

Tab A8 10.5 with case

Tab A9+ with case

Tab S5e with or without case

Tab S6 Lite with or without case

Mobile Rhino T100 with case
