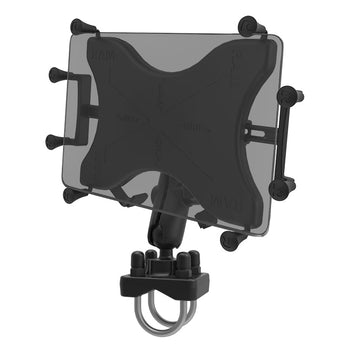

RAM® X-Grip® Mount with Double U-Bolt Base for 9"-11" Tablets
Part#:RAM-HOL-UN9-235U UPC:793442947209 Patented
Ball Icon C SIZE
Arm Icon MED ARM
3 169 kr

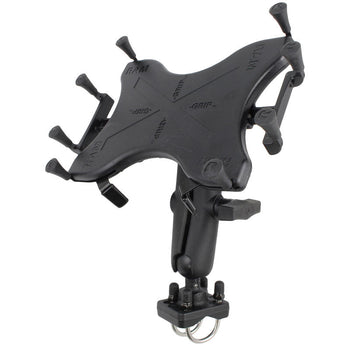

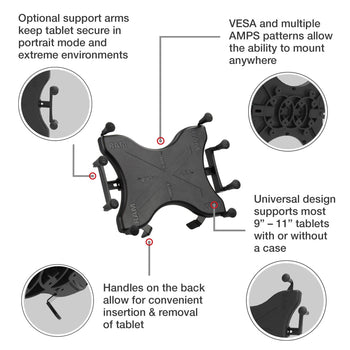

The RAM-HOL-UN9-235U consists of a double stainless steel u-bolt base, double socket arm, round base adapter and universal X-Grip® clamping cradle for 9"-11" tablets. Included in this package is hardware that will accommodate rails from 1" to 1.25" in diameter. The base includes black cover caps to be placed over the exposed ends of the u-bolt. The mount is designed with a RAM 1.5" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm this allowing for almost infinite adjustment and perfect viewing angles. The X-Grip® clamping cradle consists of a composite spring loaded cradle, expandable grip arms and additional bottom support keeper. Included are extra easy access grip knobs, located on the back of the cradle for quick release of your tablet. The X-Grip® clamping cradle expands and contracts for perfect fit of most 9"-11" tablets with or without sleeves, as well as some smaller tablets. Please verify dimensions of your tablet below for compatibility with the X-Grip®.
hardware included

Assembly Hardware
(2) 1/4"-20 U-Bolts for 1" - 1.25" Rails
(4) 1/4"-20 Nylock Nuts
(4) Rubber Caps

holder dimensions

Max Height: 10.25" (using optional supports)
Width Range: 6.25" - 8.1"
Max Depth: .875"

clamp range

1" - 1.25" diameter

socket to socket length

3"

ball size

C Size (1.5")

weight capacity

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs

materials

Marine-grade aluminum
High strength composite

packaging type

Poly Bag

Weight

1.154 kg

Consists of

RAM® Double Socket Arm - C Size Medium RAM-201U
Ball Icon C SIZE
Arm Icon MED ARM
559 kr
RAM® Round Plate with Ball - C Size RAM-202U
Ball Icon C SIZE
Arm Icon ARM
349 kr

Fire HD 10

iPad (1st Generation)

iPad (3rd Generation)

iPad (4th Generation)

iPad (5th Generation)

iPad (6th Generation)

iPad (7th Generation)

iPad (8th Generation)

iPad (9th Generation)

iPad (10th Generation)

iPad 2

iPad 9.7 (2017)

iPad 9.7 (2018)

iPad Air

iPad Air 2

iPad Air 3

iPad Air 4

iPad Air 5

iPad Pro 9.7 (1st Generation)

iPad Pro 10.5 (2nd Generation)

iPad Pro 11"

iPad Pro 11" (2020)

iPad Pro 11" (2021)

iPad Pro 11" (2022)

MeMO Pad FHD 10

Transformer Pad

ZenPad 10

ZenPad 3S 10

ZenPad Z10

Venue 10 7000

Venue 11 Pro

Venue 11 Pro 7000

Nexus 10

Pixel C

ElitePad 900

ElitePad 900 G1

Pro 610

Pro Slate 10.1

MediaPad M2 10.0

MediaPad M3 Lite 10.0

MediaPad T3 10

Miix 3

Tab P12 Pro

S6000

Tab 2 A10-70

Tab 4 10

Tab 4 10 Plus

Tab A10

Tab3 10 Business

ThinkPad 10

ThinkPad Tablet 2

Yoga Book

Yoga Tab 3 10

Yoga Tab 3 Pro

Yoga Tablet 10

Yoga Tablet 10 HD+

Yoga Tablet 2 (10 inch)

G Pad 10.1

G Pad II 10.1

G Pad X 10.1

G Pad X II 10.1

Surface 2

Surface Pro

Surface Pro 2

Surface Go

Surface Go 2

T21

Galaxy Book 10.6

Galaxy Tab 10.1

Galaxy Tab 2 10.1

Galaxy Tab 3 10.1

Galaxy Tab 4 10.1

Galaxy Tab A 9.7

Galaxy Tab A 10.5

Galaxy Tab A8 10.5

Galaxy Tab Active Pro

Galaxy Tab Active4 Pro

Galaxy Tab Pro 10.1

Galaxy Tab S 10.5

Galaxy Tab S2 9.7

Galaxy Tab S3 9.7

Galaxy Tab S4 10.5

Galaxy Tab S5e

Galaxy Tab S6

Galaxy Tab S7

Galaxy Tab S7 FE

Galaxy Tab S7 Plus

Galaxy Tab S8

Galaxy Tab S8 Plus

Galaxy Tab S9

Galaxy Tab S9 FE

Galaxy Tab S9 FE Plus

Galaxy Tab S9 Plus

Mobile Rhino T100

Vaio Tap 11

Xperia Tablet S

Xperia Tablet Z

MatrixPad Z4 10"

ET50 10"

ET55 10"
