RAM UNIVERSAL VEHICLE BASE WITH X-GRIP FOR 12 TABLETS
Part#:RAM-VB-196-UN11 UPC:793442922718 Patented
Ball Icon C SIZE
Arm Icon ARM
7 049 kr
  • Spring-loaded 'X' design with rubber caps sports great holding power without hiding your tablet; fits most 12" tablets
  • RAM® No-Drill™ base offers low-profile mounting; telescoping pole allows for height adjustments

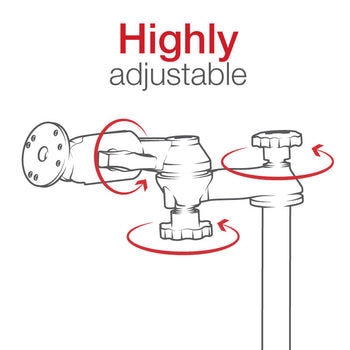

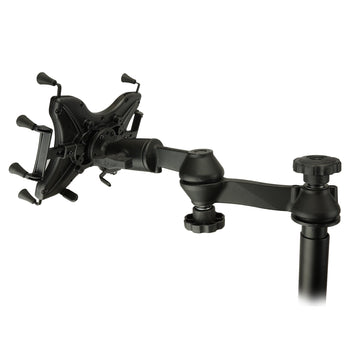

  • Dual articulating swing arm allows for ideal device placement
  • Made of powder-coated, marine-grade aluminum and high-strength composite for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

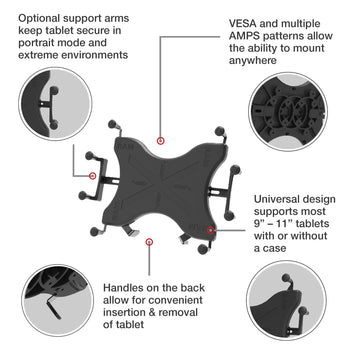

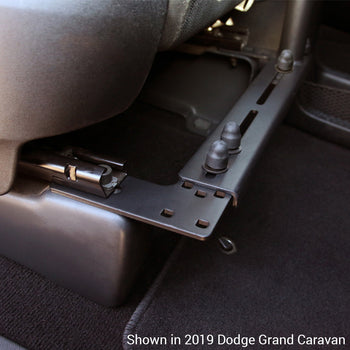

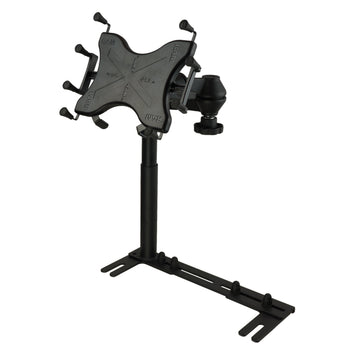

This vehicle bundle consists of the RAM® No-Drill™ mounting system and the RAM® X-Grip® universal holder for 12" tablets. Designed to install quickly and easily into a range of vehicles using the existing hardware of the passenger side seat rails. This configuration provides a telescoping feature that ranges from 12” to 18”. Dual swing arms provide articulation and 12” of reach for passenger and driver access to the mounted device. The RAM® X-Grip® features an 'X' design that expands and contracts to provide a perfect fit for your device – even if it's in a case. Included are easy access grip knobs located on the back of the cradle for quick release of your tablet. This version of the RAM® X-Grip® holder is compatible with tablets that will fit the dimensions listed below. It is important to verify the dimensions of device with its case, sleeve, or skin when determining the overall size.
This vehicle bundle consists of the RAM® No-Drill™ mounting system and the RAM® X-Grip® universal holder for 12" tablets. Designed to install quickly and easily into a range of vehicles using the existing hardware of the passenger side seat rails. This configuration provides a telescoping feature that ranges from 12” to 18”. Dual swing arms provide articulation and 12” of reach for passenger and driver access to the mounted device. The RAM® X-Grip® features an 'X' design that expands and contracts to provide a perfect fit for your device – even if it's in a case. Included are easy access grip knobs located on the back of the cradle for quick release of your tablet. This version of the RAM® X-Grip® holder is compatible with tablets that will fit the dimensions listed below. It is important to verify the dimensions of device with its case, sleeve, or skin when determining the overall size.
hardware included

Assembly Hardware
Stabilizer Foot
holder dimensions

Max Height: 10.25" (using optional supports)
Width Range: 7.25" - 8.75"
Max Depth: .875"
hole pattern

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
Seat Bolt Distance: 9"-18.875" center to center
ball size

C Size (1.5")
weight capacity

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
materials

Powder coated steel
Marine grade-aluminum
High strength composite
packaging type

Box
Weight

5.525 kg
Additional Information
Will this mount install in your vehicle? Learn more by following the steps in this document:

Universal Vehicle Laptop Mount Compatibility Guide


Depending on your vehicle, some installations may limit the adjustability of the passenger seat.

iPad Pro 12.9 (1st Gen)

iPad Pro 12.9 (2nd Gen)

iPad Pro 12.9 (3rd Gen)

iPad Pro 12.9 (4th Gen)

iPad Pro 12.9 (5th Gen)

iPad Pro 12.9 (6th Gen)

Latitude 5285

Pixelbook

Elite X2 1012 G1

Elite X2 1012 G2

Pro X2 612

Pro X2 612 G1

IdeaTab Lynx K3011

Miix 720

Yoga A12

Surface 3

Surface Book

Surface Pro (2017)

Surface Pro 3

Surface Pro 4

Surface Pro 5

Surface Pro 6

Surface Pro 7

Surface Pro 8

Surface Pro X

Galaxy Book 12"

Galaxy Pro 12.2

Galaxy TabPro S

Galaxy Tab S8 Ultra

R12 XSLATE
