RAM SGL SWING ARM 8 MALE 9 FEMALE TUBE
Part#:RAM-VP-SW2-89 UPC:793442924637 Patented
Ball Icon C SIZE
Arm Icon ARM
3 129 kr

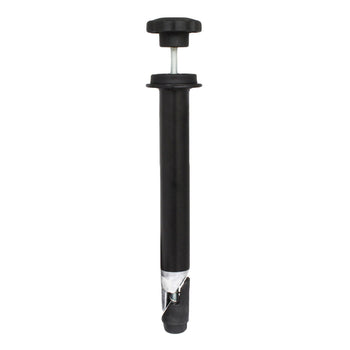

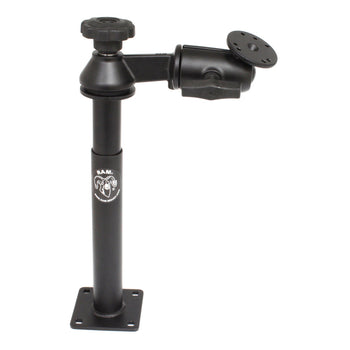

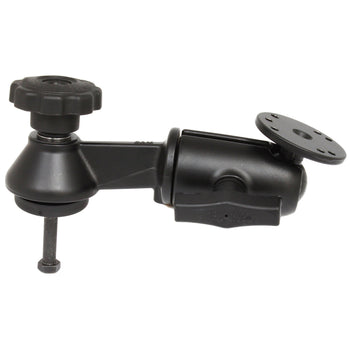

The RAM-VP-SW2-89 consists of a 9" lower female Tele-Pole™, 8" upper male Tele-Pole™, single swing arm and 2.5" round base that contains the universal AMPs hole pattern. The lower female Tele-Pole™ will attach to all RAM vehicles bases that do not contain a welded female Tele-Pole™. The height of the Tele-Poles™, combined, can easily be adjusted by turning the knob at the top of the post. Once the knob has been tightened, the Tele-Pole™ becomes a rigid support for connecting devices or cradles.

The RAM-VP-SW2-89 consists of a 9" lower female Tele-Pole™, 8" upper male Tele-Pole™, single swing arm and 2.5" round base that contains the universal AMPs hole pattern. The lower female Tele-Pole™ will attach to all RAM vehicles bases that do not contain a welded female Tele-Pole™. The height of the Tele-Poles™, combined, can easily be adjusted by turning the knob at the top of the post. Once the knob has been tightened, the Tele-Pole™ becomes a rigid support for connecting devices or cradles.
hardware included

Assembly Hardware
(4) 5/16"-18 x 1" Carriage Bolts
(4) 5/16"-18 Hex Nuts
(4) 5/16" Flat Washers
(4) 5/16" Split Lock Washers
(4) Rubber Caps

product dimensions

Minimum Height: 16.3"
Maximum Height: 21.3"

hole pattern

Tele-Pole: 2.625" x 2.625"
Round Plate: 4-Hole AMPS: 1.181" x 1.496" & 3-Hole 120-Degree: 1.812" Diameter

ball size

C Size (1.5")

materials

Powder coated steel
Marine-grade aluminum

packaging type

Box

Weight

2.948 kg
