RAM SGL SWING ARM 8 MALE 9 FEMALE TUBE
Part#:RAM-VP-SW2-89-240 UPC:793442924644 Patented
Ball Icon C SIZE
Arm Icon ARM
3 299 kr

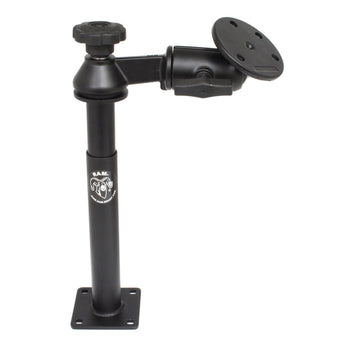

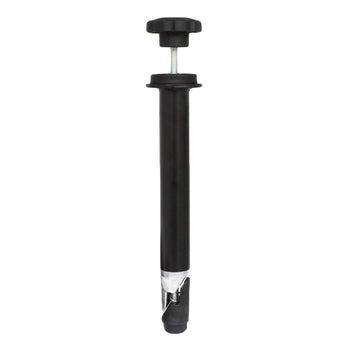

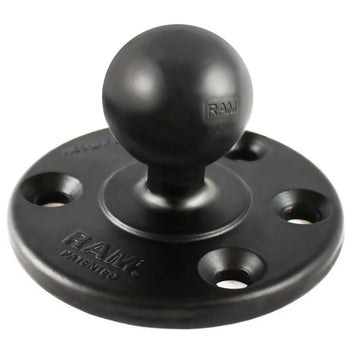

The RAM-VP-SW2-89-240 consists of a 9" lower female Tele-Pole™, 8" upper male Tele-Pole™, single swing arm and 3.68" round base. The lower female Tele-Pole™ will attach to all RAM vehicles bases that do not contain a welded female Tele-Pole™. The height of the Tele-Poles™, combined, can easily be adjusted by turning the knob at the top of the post. Once the knob has been tightened, the Tele-Pole™ becomes a rigid support for connecting devices or cradles. The length of the double swing arm is 6". The 3.68" round base contains pre-drilled holes that connects to RAM Tough-Dock™ Powered Docking Stations.
The RAM-VP-SW2-89-240 consists of a 9" lower female Tele-Pole™, 8" upper male Tele-Pole™, single swing arm and 3.68" round base. The lower female Tele-Pole™ will attach to all RAM vehicles bases that do not contain a welded female Tele-Pole™. The height of the Tele-Poles™, combined, can easily be adjusted by turning the knob at the top of the post. Once the knob has been tightened, the Tele-Pole™ becomes a rigid support for connecting devices or cradles. The length of the double swing arm is 6". The 3.68" round base contains pre-drilled holes that connects to RAM Tough-Dock™ Powered Docking Stations.
hardware included

Assembly Hardware
(4) 5/16"-18 x 1" Carriage Bolts
(4) 5/16"-18 Hex Nuts
(4) 5/16" Flat Washers
(4) 5/16" Split Lock Washers
(4) Rubber Caps
product dimensions

Minimum Height: 16.3"
Maximum Height: 21.3"
hole pattern

Tele-Pole: 2.625" x 2.625"
Round Plate: See Drawing
ball size

C Size (1.5")
materials

Powder coated steel
Marine-grade aluminum
packaging type

Box
Weight

2.948 kg
